Hardware Compatibility List
Only a limited number of adapters can output Full HD (1920 x 1080 @ 60Hz).
I recommend the DisplayLink DL-165 and DL-195.
Compatibility reports welcome
If you get one of the adapters marked “Untested” below working, I would be grateful if you could share the result - this is entirely voluntary, but every report makes this list more useful for everyone.
Please contact me via this email address or on X.com(@pcjpnet).
When reporting, please include the following:
- Flash the test firmware by following the “Quick Start” instructions on the Home Page, and take a photo of the information shown on the screen.
- A photo of the disassembled adapter in which the chip’s part number is readable.
Supported Chip
The following chips are currently supported:
| Chip | Max Resolution | Supported Platforms |
|---|---|---|
| DisplayLink DL-120 | 1280x1024 / 1400x1050 | RP2040, RP2350, ESP32-S2, ESP32-S3, ESP32-P4, Teensy 4.x, PC |
| DisplayLink DL-160 | 1600x1200 / 1680x1050 | RP2040, RP2350, ESP32-S2, ESP32-S3, ESP32-P4, Teensy 4.x, PC |
| DisplayLink DL-115 | 1024x600 | RP2040, RP2350, ESP32-S2, ESP32-S3, ESP32-P4, Teensy 4.x, PC |
| DisplayLink DL-125 | 1280x1024 / 1440x900 | RP2040, RP2350, ESP32-S2, ESP32-S3, ESP32-P4, Teensy 4.x, PC |
| DisplayLink DL-165 | 1600x1200 / 1920x1080 | RP2040, RP2350, ESP32-S2, ESP32-S3, ESP32-P4, Teensy 4.x, PC |
| DisplayLink DL-195 | 1920x1200 / 2048x1152 | RP2040, RP2350, ESP32-S2, ESP32-S3, ESP32-P4, Teensy 4.x, PC |
| DisplayLink DL-3xxx | - | Not supported. It is encrypted. |
| DisplayLink DL-4xxx | - | Not supported. It is encrypted. |
| DisplayLink DL-5xxx | - | Not supported. It is encrypted. |
| DisplayLink DL-6xxx | - | Not supported. It is encrypted. |
| MCT Trigger 2 | 1600x1200 / 1680x1050 | Not supported. No public protocol information. |
| MCT Trigger 5 | 1920x1200 | Not tested. Hardware not yet acquired. |
| MCT Trigger 6 | 3840x2160 * | ESP32-P4, PC |
| MacroSilicon MS912x | 1920x1080 | ESP32-P4, PC |
| MacroSilicon MS913x | 1920x1080 | ESP32-P4, PC |
| GUD Protocol | - | Not supported. |
| Fresco Logic FL2000 | - | Not supported. NO FRAME BUFFER. |
| SiS + USB Controller | - | Hardware is difficult to source. |
| SMSC / Microchip UFX6000 | - | Hardware is difficult to source. |
| SMSC / Microchip UFX7000 | - | Hardware is difficult to source. |
| Grain Media GM12U320 | - | Hardware is difficult to source. |
| STMicro SPEAr family | - | Hardware is difficult to source. |
- I recommend the DisplayLink DL-165 and DL-195.
- DisplayLink chips from the third generation onwards use a fully encrypted communication process. While some of the encryption appears to have been analyzed, this has not yet resulted in the ability to display an image. https://github.com/FireBurn/vino-scripts
- DisplayLink chips from the third generation onwards also require USB High-Speed communication. Even if the encryption were bypassed, support would be limited to the ESP32-P4 and the PC.
- The MCT Trigger 6 chip requires USB High-Speed communication, and the video data must be JPEG-encoded. Support is limited to the ESP32-P4 and the PC.
- The MCT Trigger 6 chip supports 4K resolution. However,the library’s default build caps the mode width at 2048 (
USB_DISP_MAX_WIDTH); 4K would need-DUSB_DISP_MAX_WIDTH=3840and far more RAM than an MCU has, so treat 4K as PC (libusb) territory. - The MacroSilicon MS91xx chips require USB High-Speed communication, so they are supported only on the ESP32-P4 and the PC.
- Fresco Logic FL2000 chip does not have a frame buffer; it requires data input at the same rate as the output frame rate and functions solely as a simple interface converter. This is not practical for an MCU.
USB Graphics Display Adapter
| Manufacturer | Model Number | Output | Chip | Status |
|---|---|---|---|---|

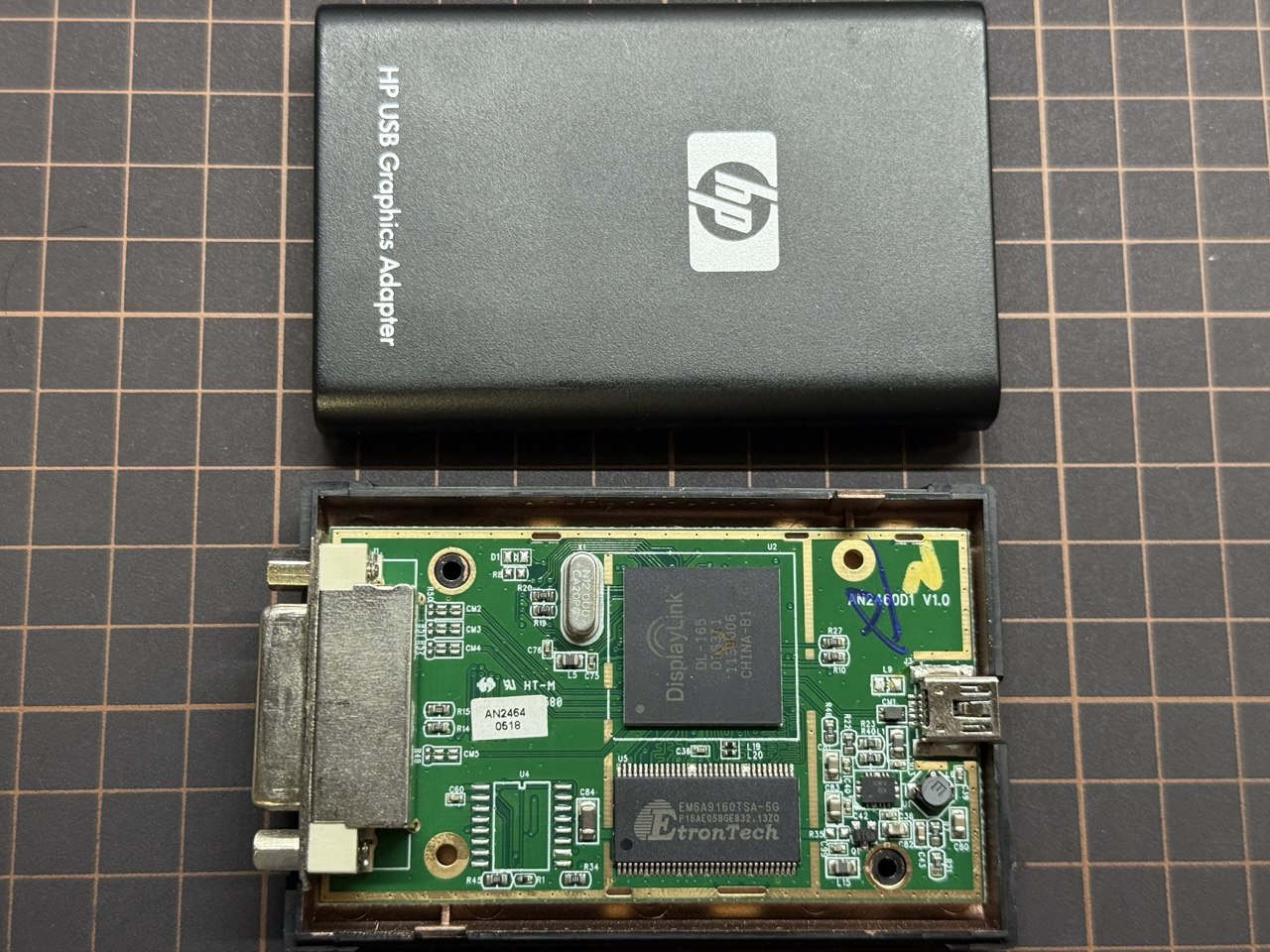

| Hewlett Packard | NL571AA / 584670-001 | DVI | DL-165 | ✅ Supported |
| Plugable | UGA-125 | DVI | DL-125? | Untested |
| Plugable | UGA-M165 | DVI | DL-165? | Untested |
| Plugable | UGA-165 | DVI | DL-165? | Untested |
| Plugable | USB-VGA-165 | VGA | DL-165? | Untested |
| Plugable | UGA-2K-A | DVI | DL-195? | Untested |
| StarTech | USB2HDMI | HDMI | DL-165? | Untested |
| StarTech | USB2DVIPRO2 | DVI | DL-195? | Untested |
| StarTech | USB2VGAPRO2 | VGA | DL-195? | Untested |

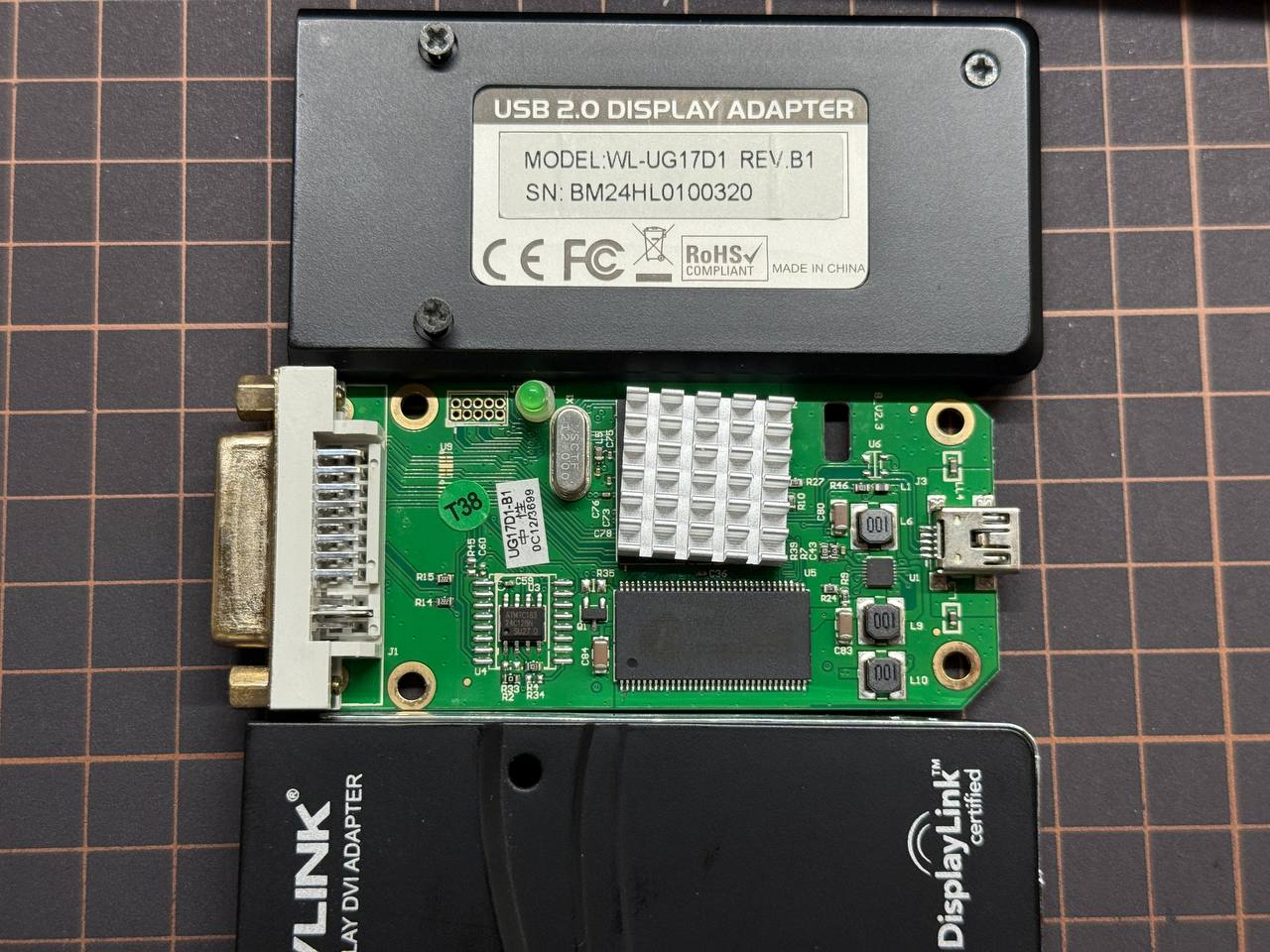

| WAVLINK | WL-UG17D1 | DVI | DL-165 | ✅ Supported |
| WAVLINK | WL-UG17D2 | DVI | DL-165? | Untested |
| Diamond Multimedia | BVU160 | DVI | DL-160? | Untested |
| Diamond Multimedia | BVU165 | DVI | DL-165? | Untested |
| Diamond Multimedia | BVU165LT | DVI | DL-165? | Untested |
| Diamond Multimedia | BVU195 | DVI | DL-195? | Untested |
| Eaton / Tripp Lite | U244-001-R | DVI | DL-165? | Untested |
| Eaton / Tripp Lite | U244-001-VGA | VGA | DL-165? | Untested |
| Eaton / Tripp Lite | U244-001-VGA-R | VGA | DL-165? | Untested |
| Eaton / Tripp Lite | U244-001-HDMI-R | HDMI | DL-165? | Untested |
| IOGEAR | GUC2015V | VGA | ? | Untested |
| IOGEAR | GUC2020DW6 | DVI | ? | Untested |
| IOGEAR | GUC2025H | HDMI | ? | Untested |
| EVGA | 100-U2-UV12 | DVI | ? | Untested |
| EVGA | 100-U2-UV16 | DVI | ? | Untested |
| EVGA | 100-U2-UV19 | DVI | DL-195? | Untested |
| Kensington | K33907 | DVI | ? | Untested |
| Kensington | K33928 | DVI | ? | Untested |
| Sewell | SW-22857 | DVI | ? | Untested |
| SIIG | JU-DV0112-S1 | DVI | ? | Untested |
| Sabrent | UGA-2K-195 | DVI | DL-195? | Untested |

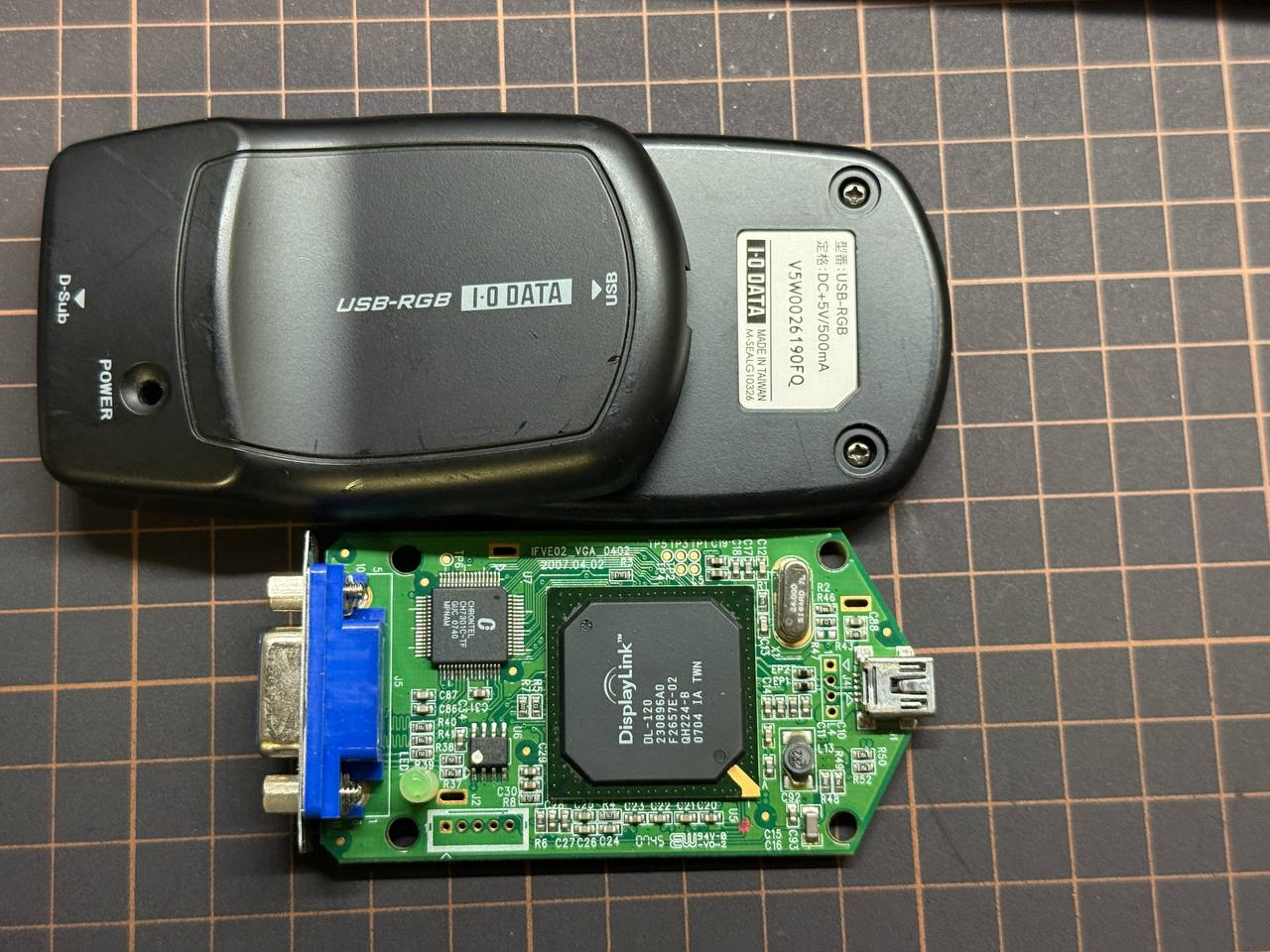

| アイ・オー・データ | USB-RGB | VGA | DL-120 | ✅ Supported |

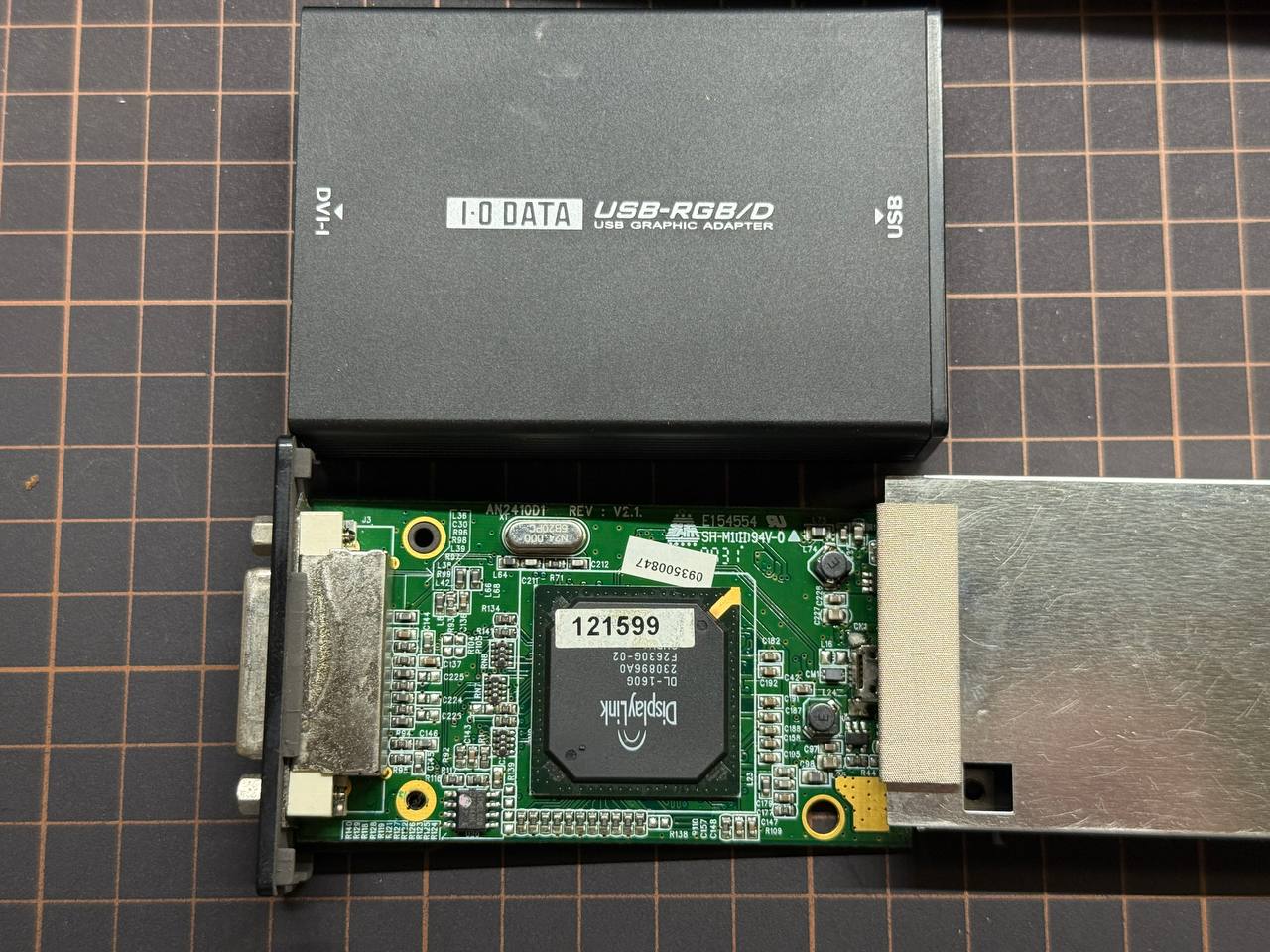

| アイ・オー・データ | USB-RGB/D | DVI | DL-160 | ✅ Supported |

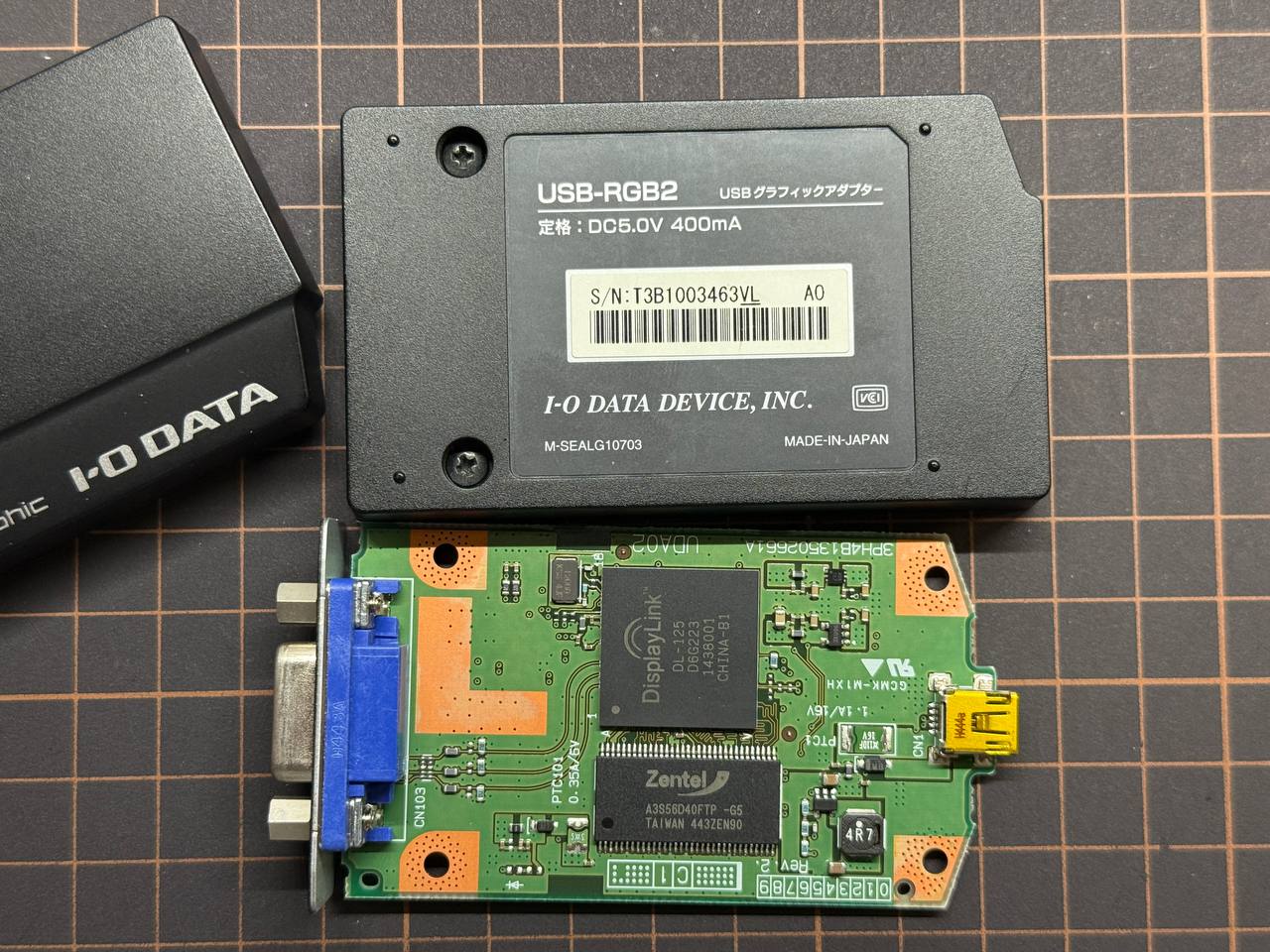

| アイ・オー・データ | USB-RGB2 | VGA | DL-125 | ✅ Supported |

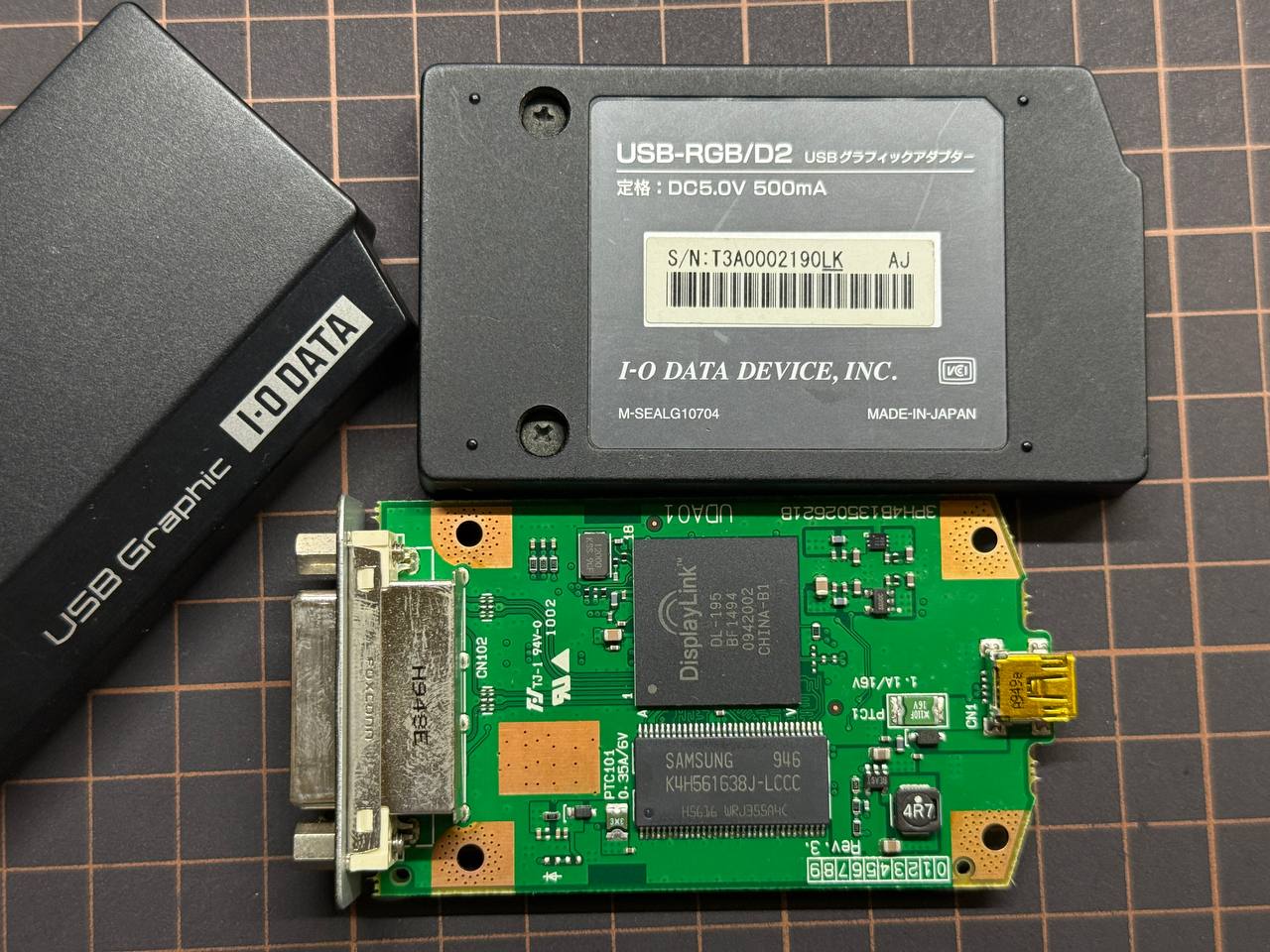

| アイ・オー・データ | USB-RGB/D2 | DVI | DL-195 | ✅ Supported |
| アイ・オー・データ | USB-RGB/D2S | DVI | ? | Untested |

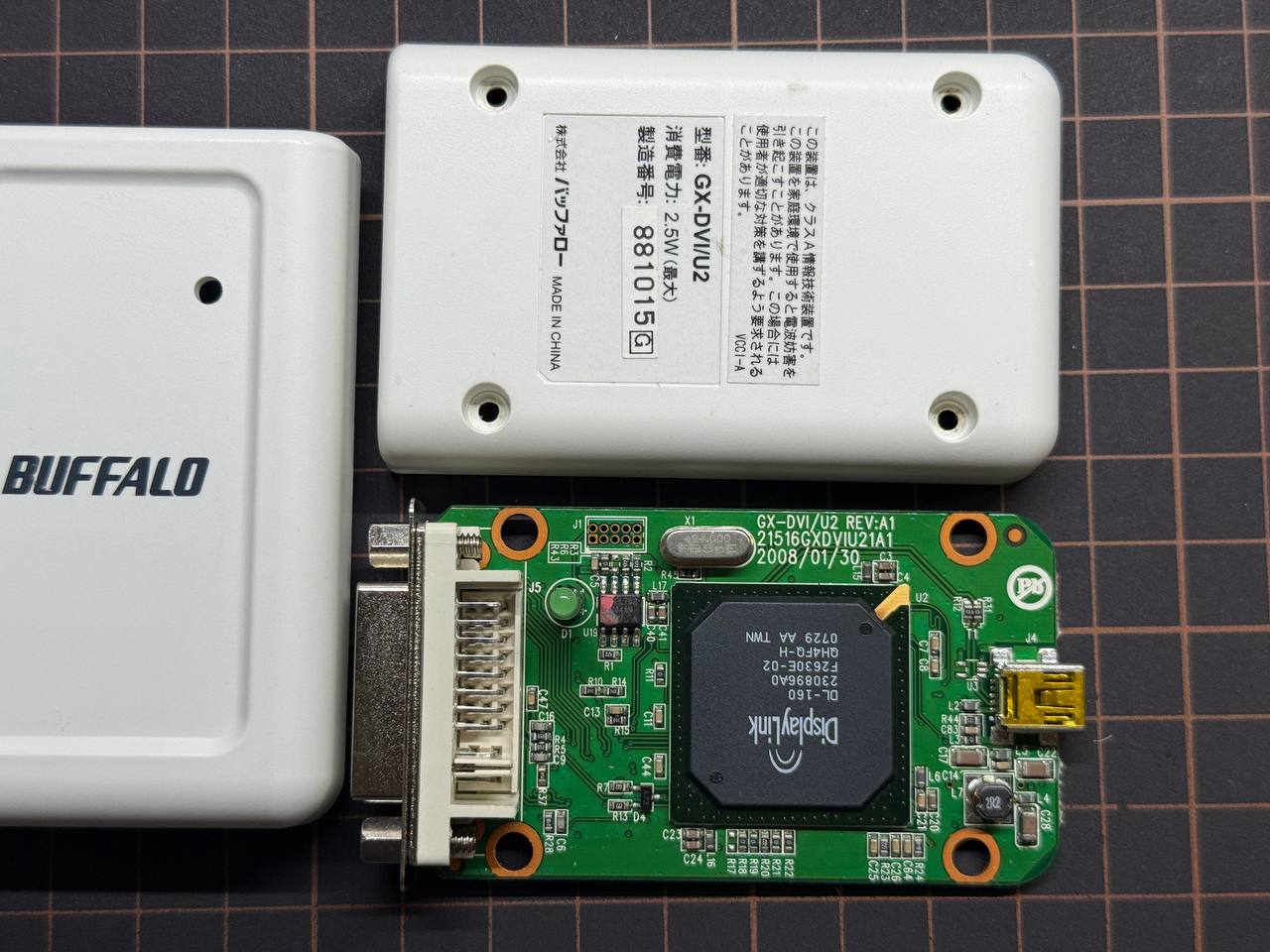

| バッファロー | GX-DVI/U2 | DVI | DL-160 | ✅ Supported |

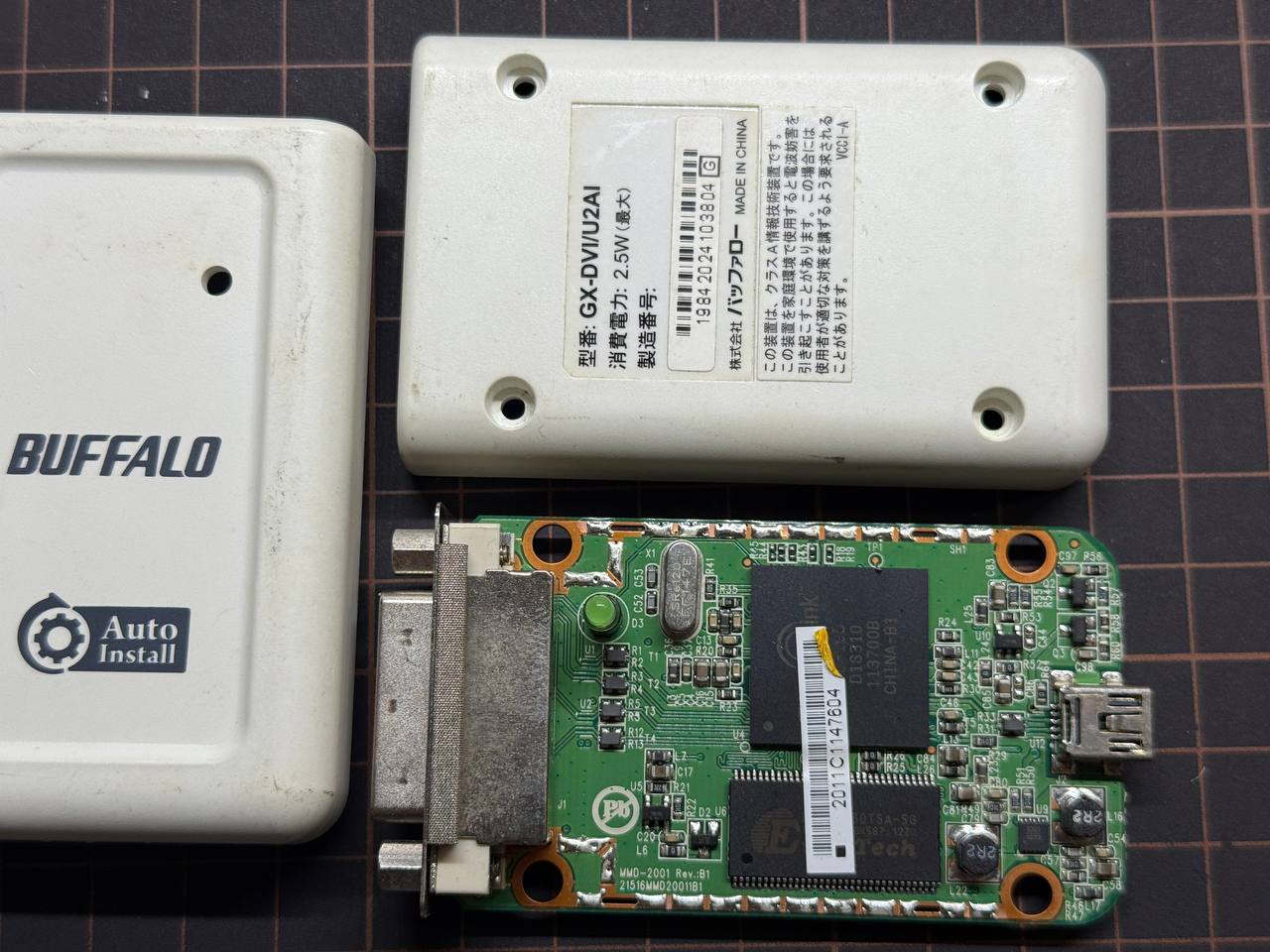

| バッファロー | GX-DVI/U2AI | DVI | DL-195 | ✅ Supported1 |

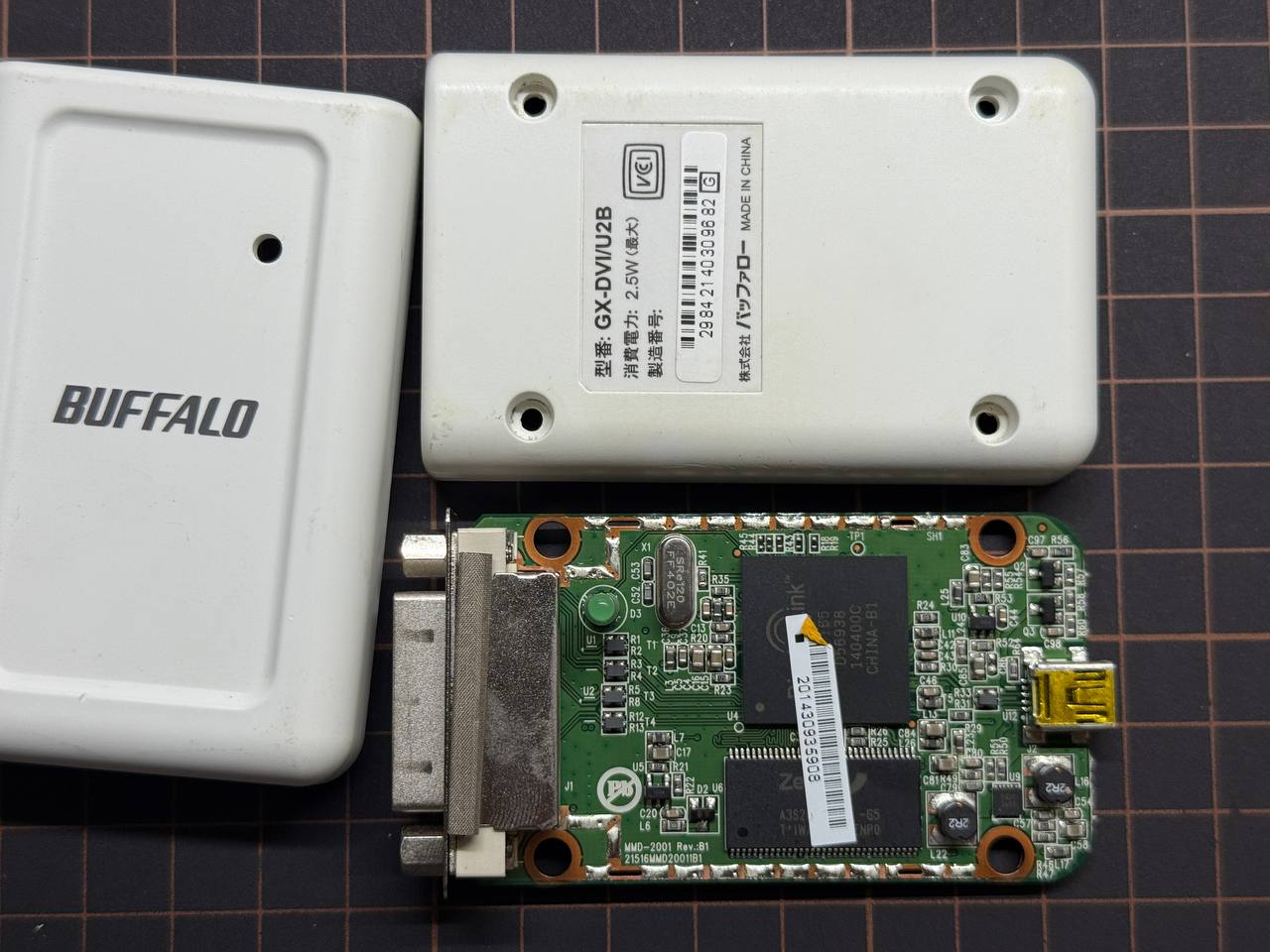

| バッファロー | GX-DVI/U2B | DVI | DL-165 | ✅ Supported |

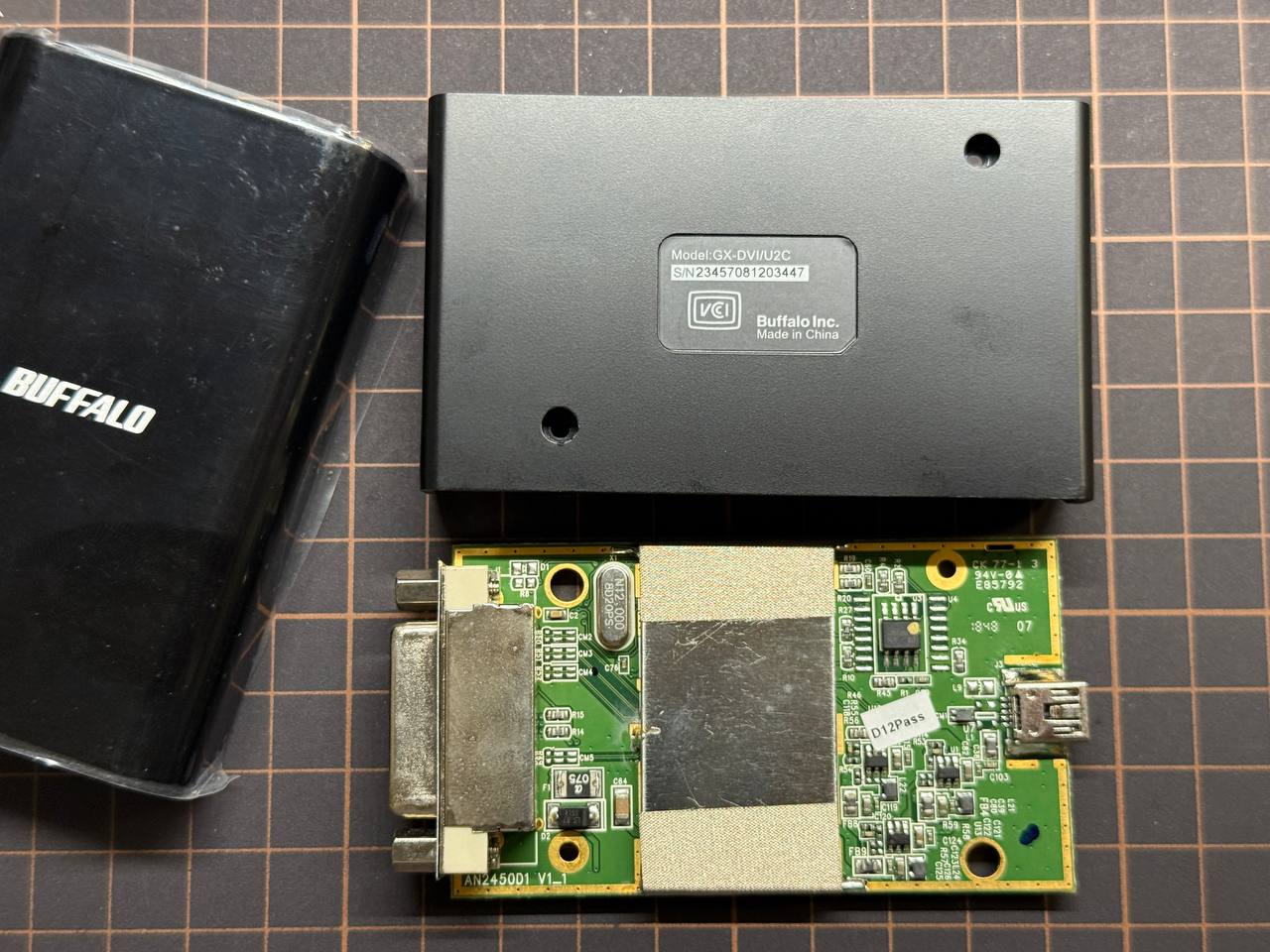

| バッファロー | GX-DVI/U2C | DVI | DL-195 | ✅ Supported |

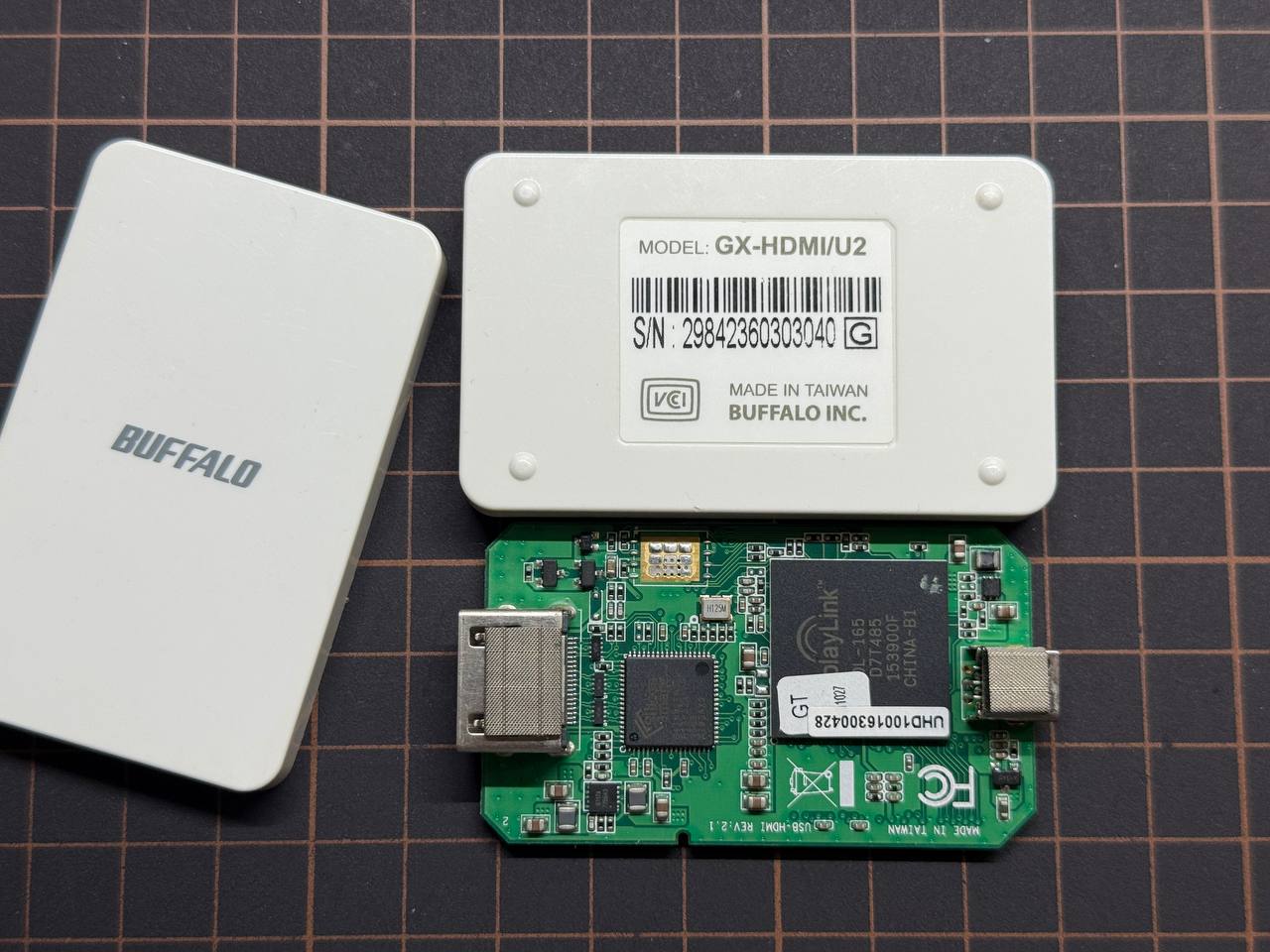

| バッファロー | GX-HDMI/U2 | HDMI | DL-165 | ✅ Supported |
| エレコム / Logitec | LDE-SX010U | VGA | ? | Untested |
| エレコム / Logitec | LDE-SX015U | VGA | ? | Untested |

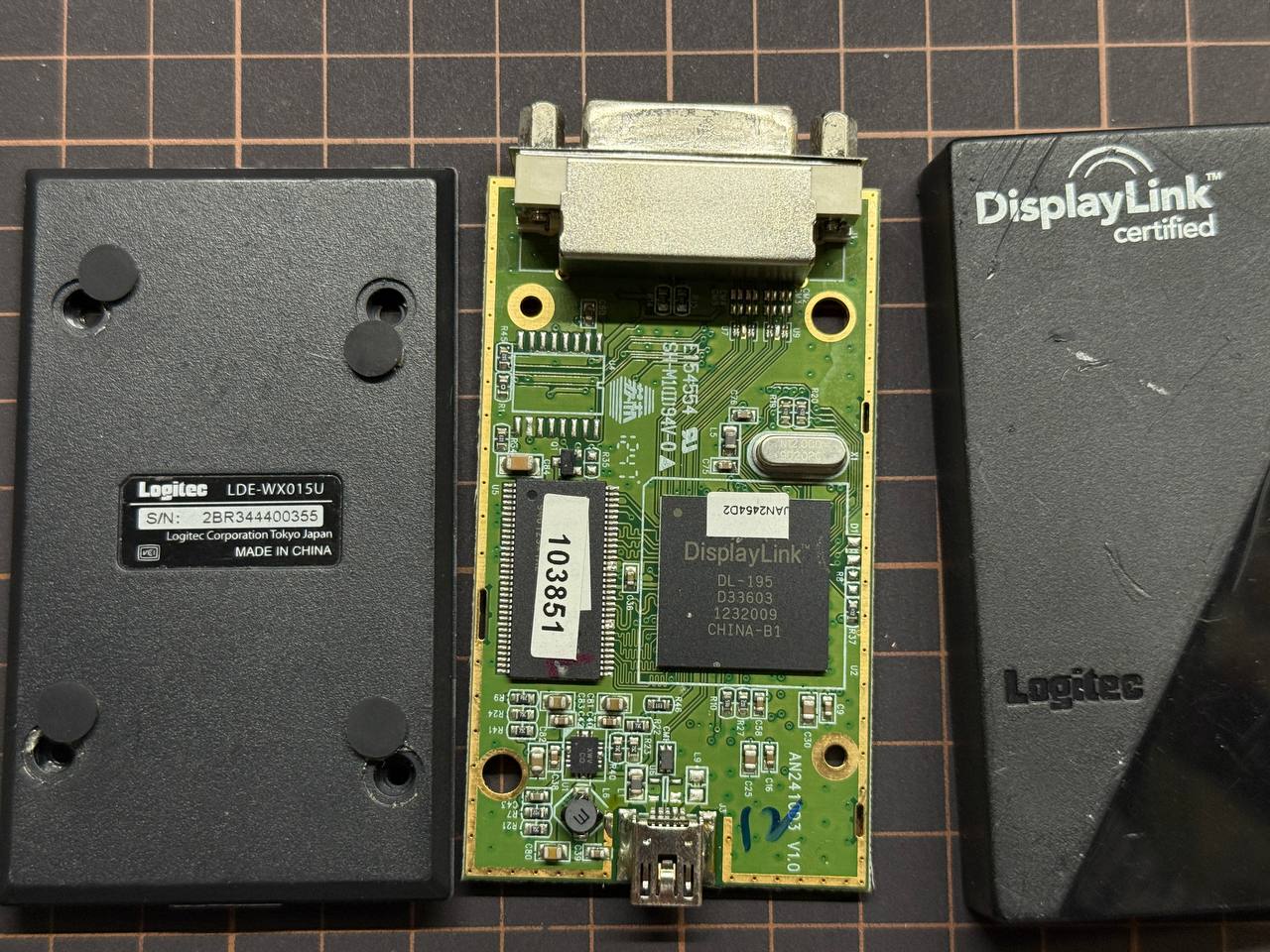

| エレコム / Logitec | LDE-WX015U | DVI | DL-195 | ✅ Supported |

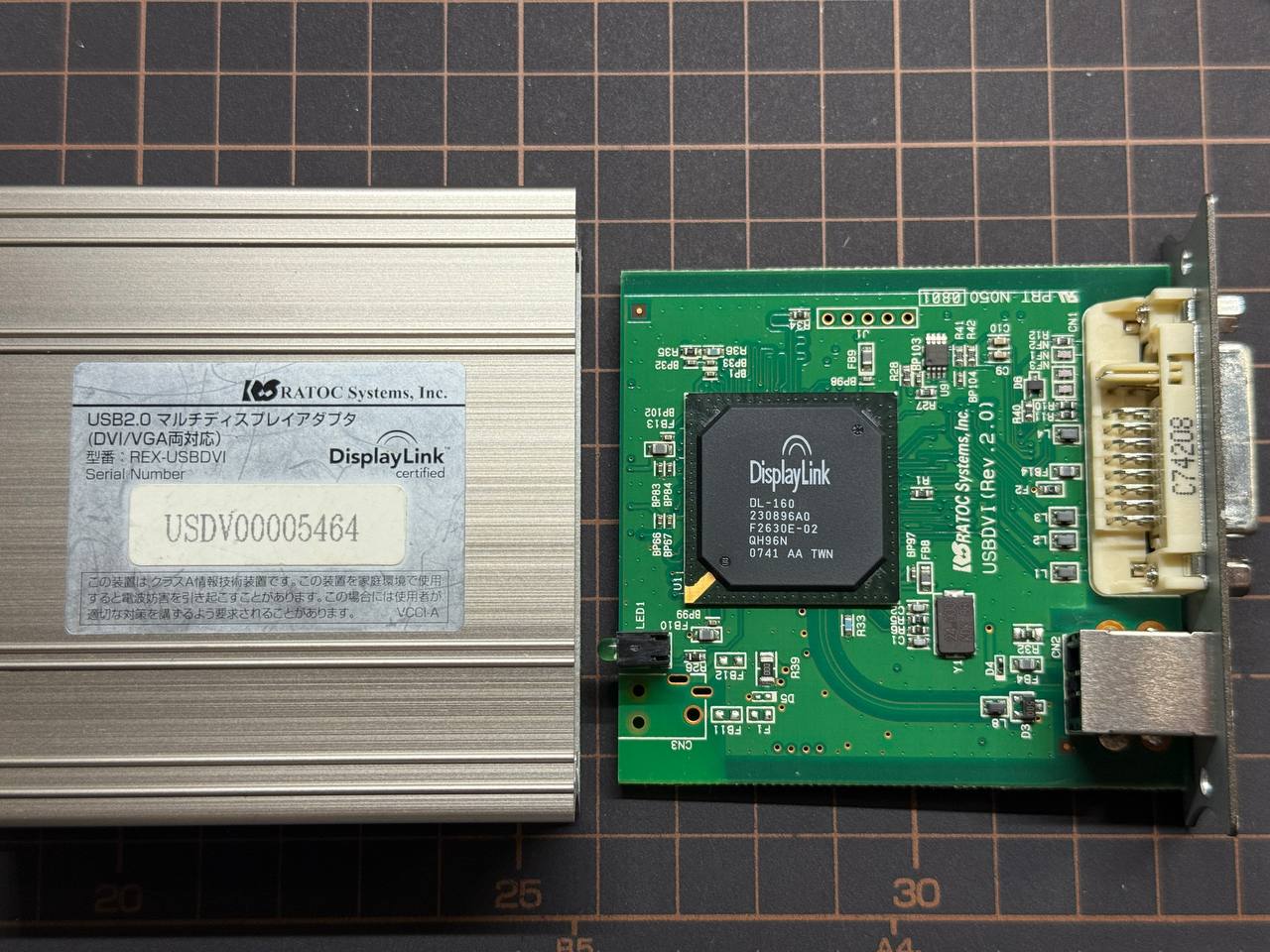

| ラトックシステム | REX-USBDVI | DVI | DL-160 | ✅ Supported |

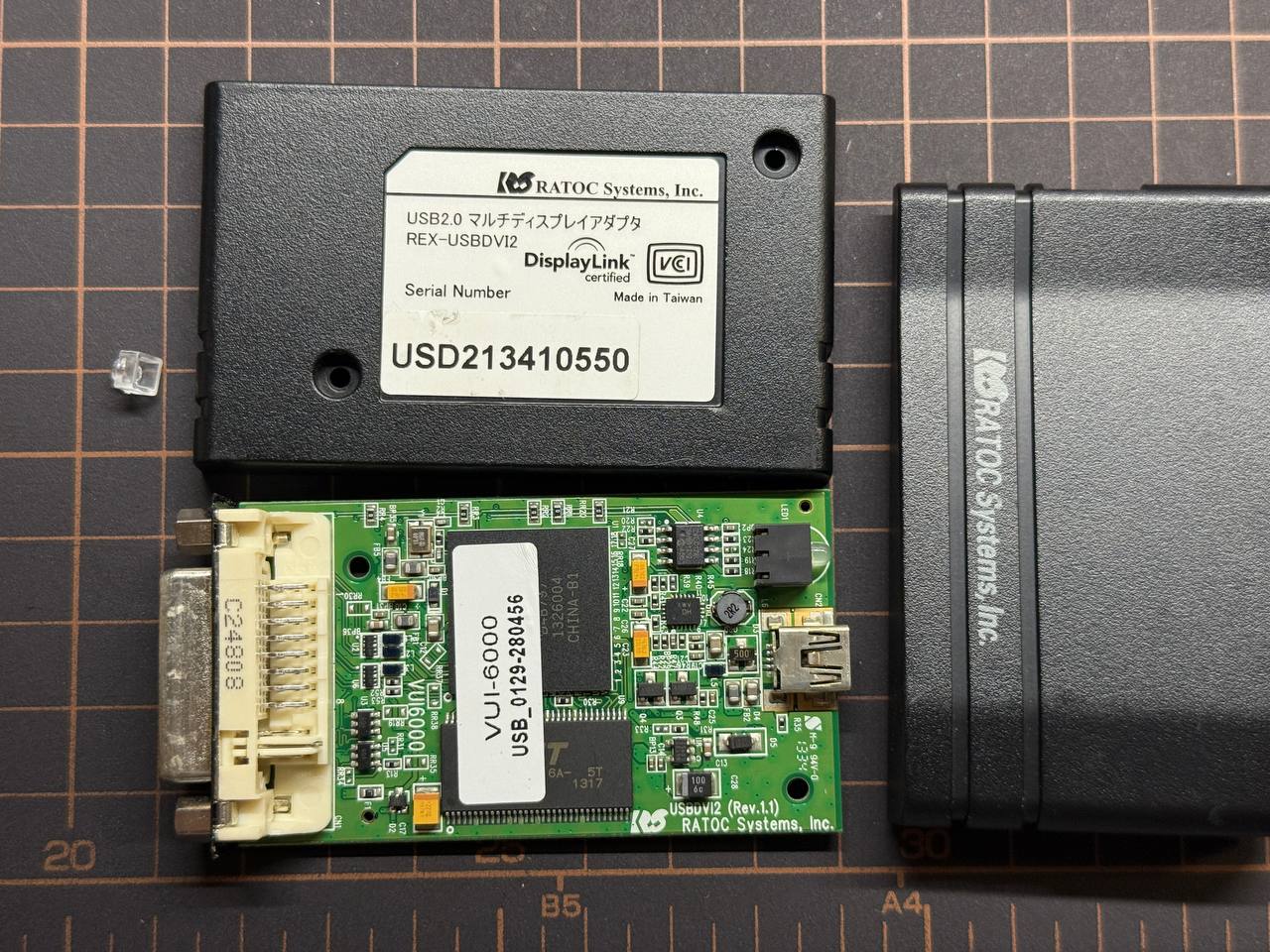

| ラトックシステム | REX-USBDVI2 | DVI | DL-195 | ✅ Supported |

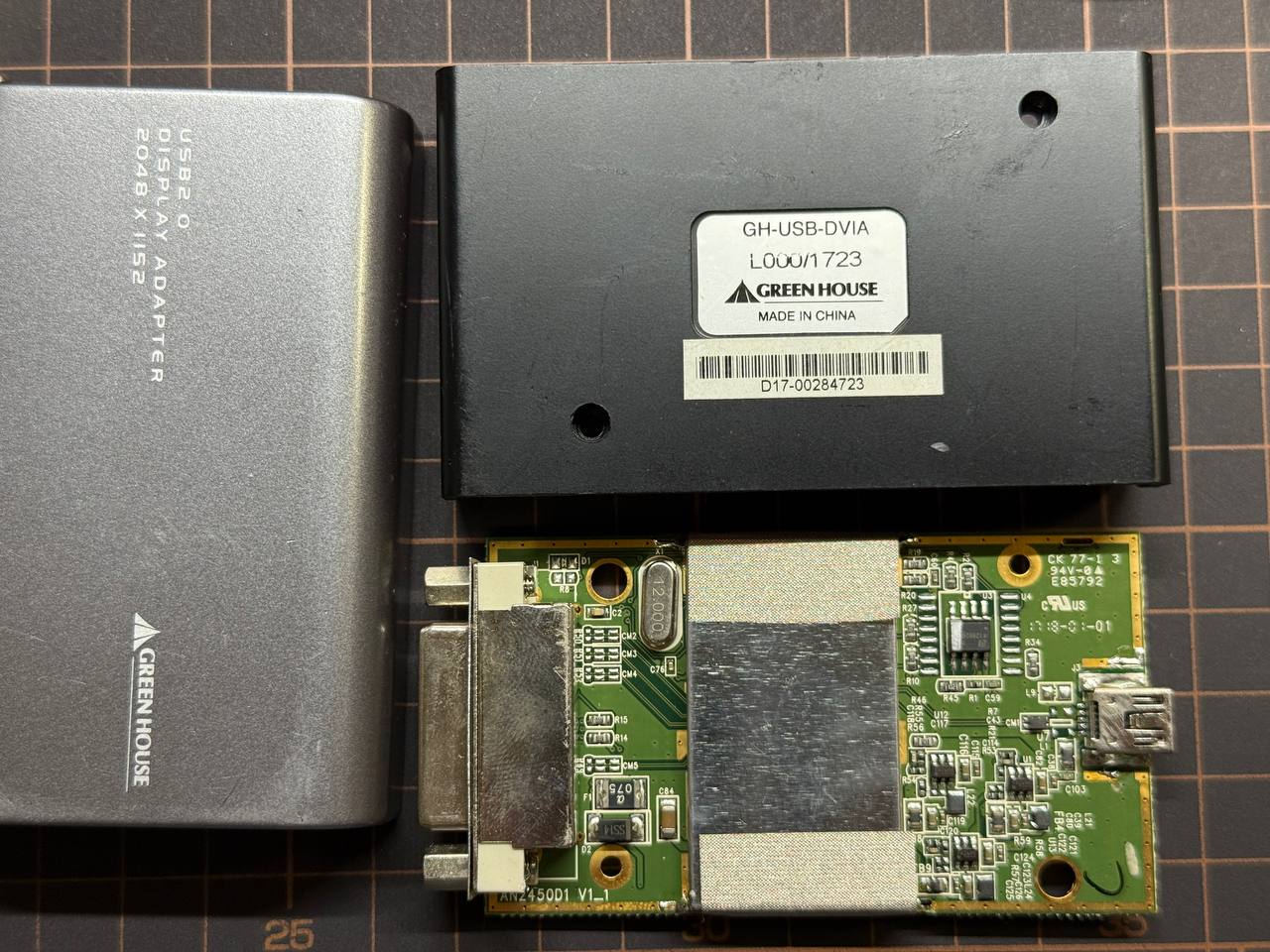

| グリーンハウス | GH-USB-DVIA | DVI | DL-195 | ✅ Supported |
| グリーンハウス | GH-USB-VGAFHD | VGA | ? | Untested |

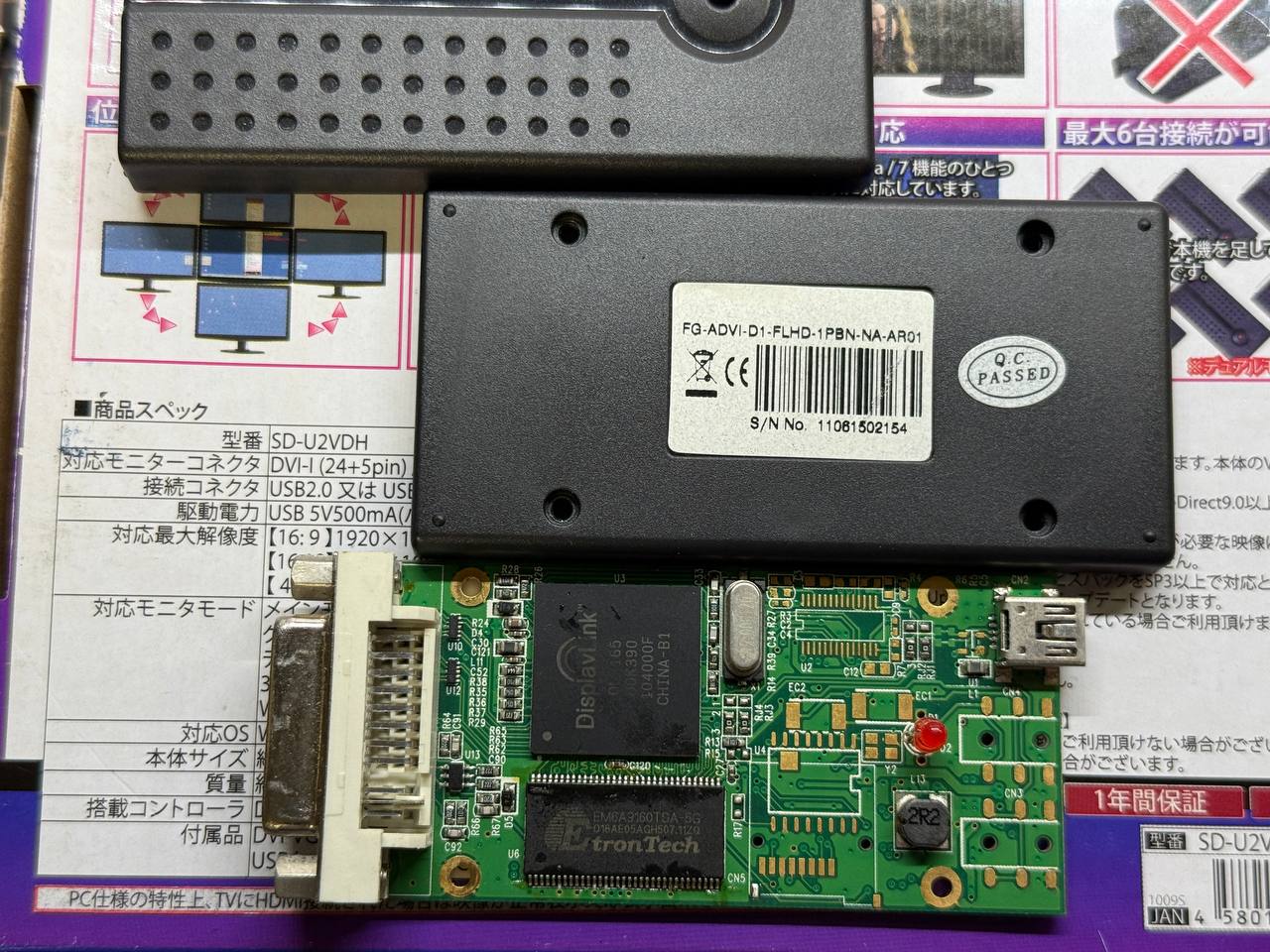

| エアリア | SD-U2VDH | DVI | DL-165 | ✅ Supported2 |

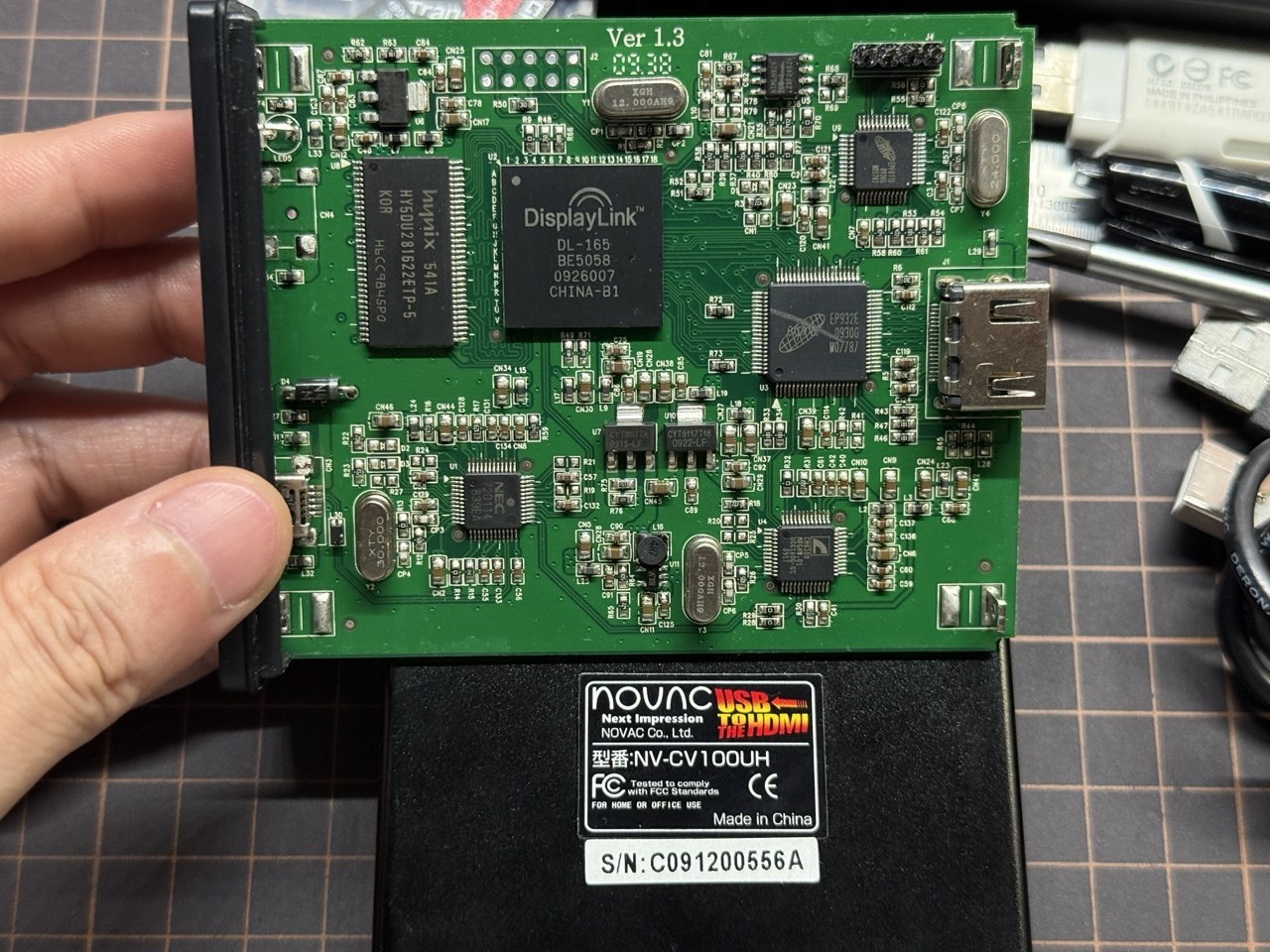

| ノバック | NV-CV100UH | HDMI | DL-165 | ✅ Supported3 |

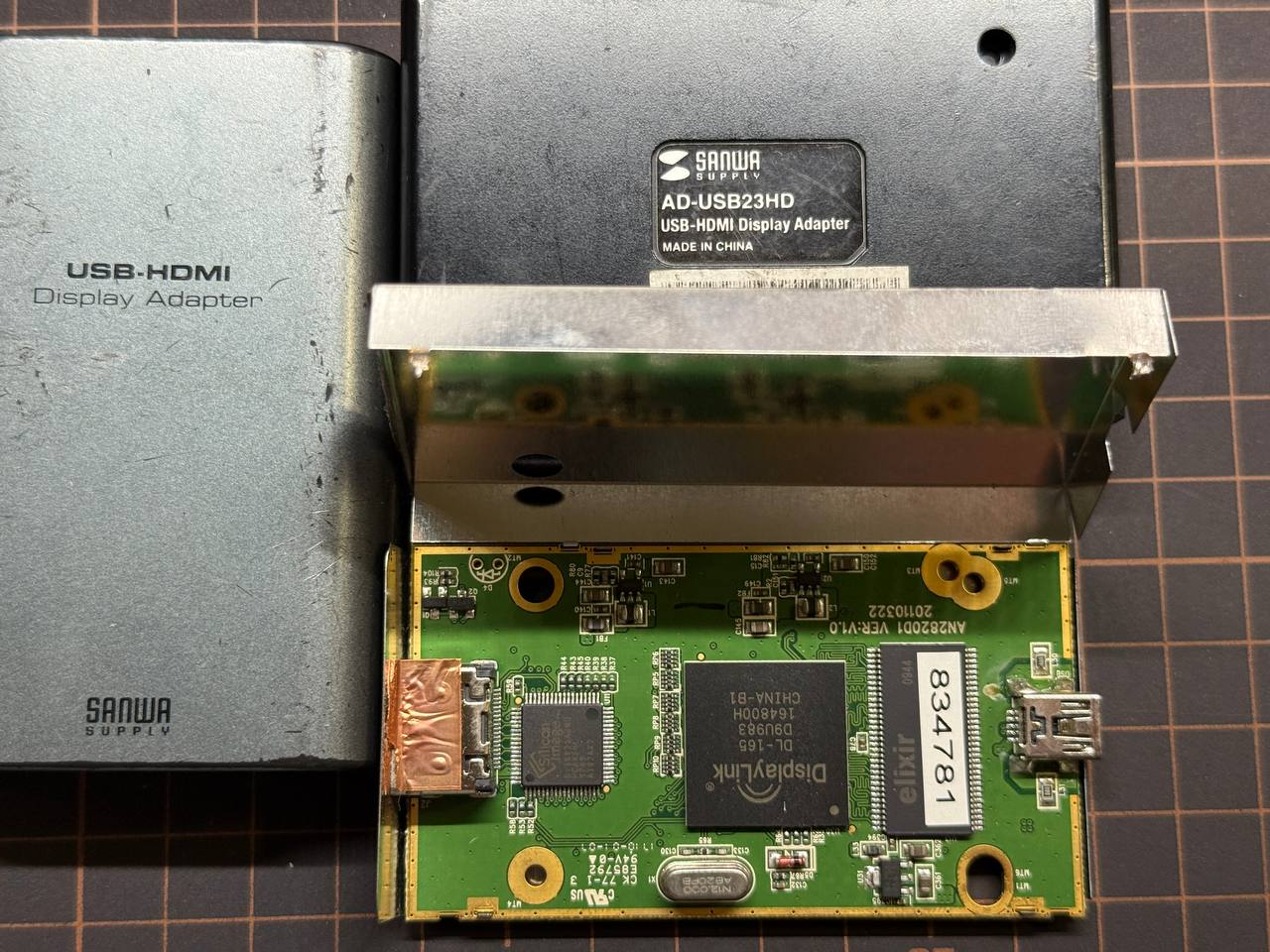

| サンワサプライ | AD-USB23HD | HDMI | DL-165 | ✅ Supported |
| サンワサプライ | AD-USB24VGA | VGA | ? | Untested |

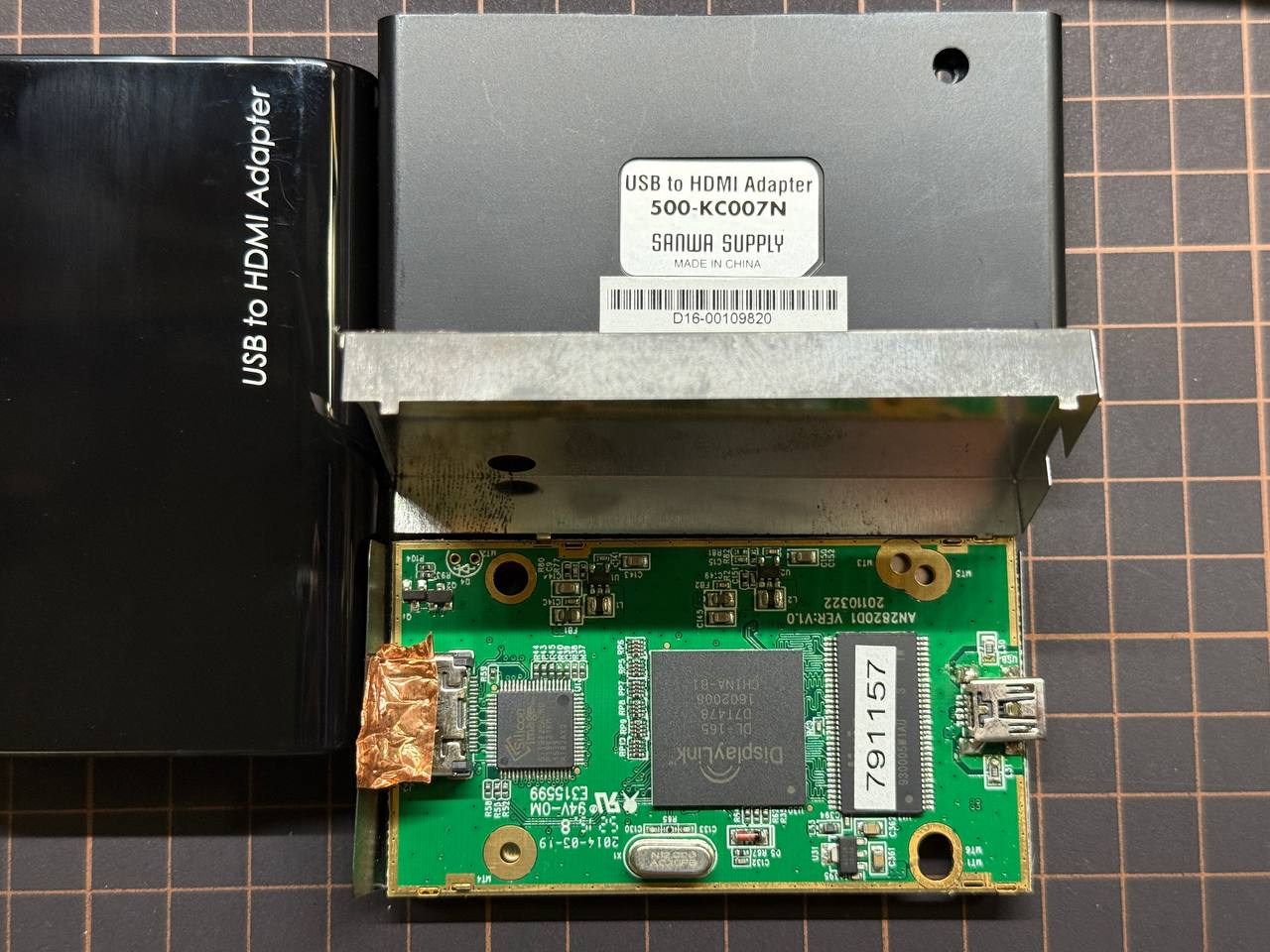

| サンワサプライ | 500-KC007(N) | HDMI | DL-165 | ✅ Supported |
| サンワサプライ | 500-KC002(N) | VGA | ? | Untested |
| SANKA / アユート | KDU211 | VGA | ? | Untested |
| SANKA / アユート | KDU221 | DVI | ? | Untested |

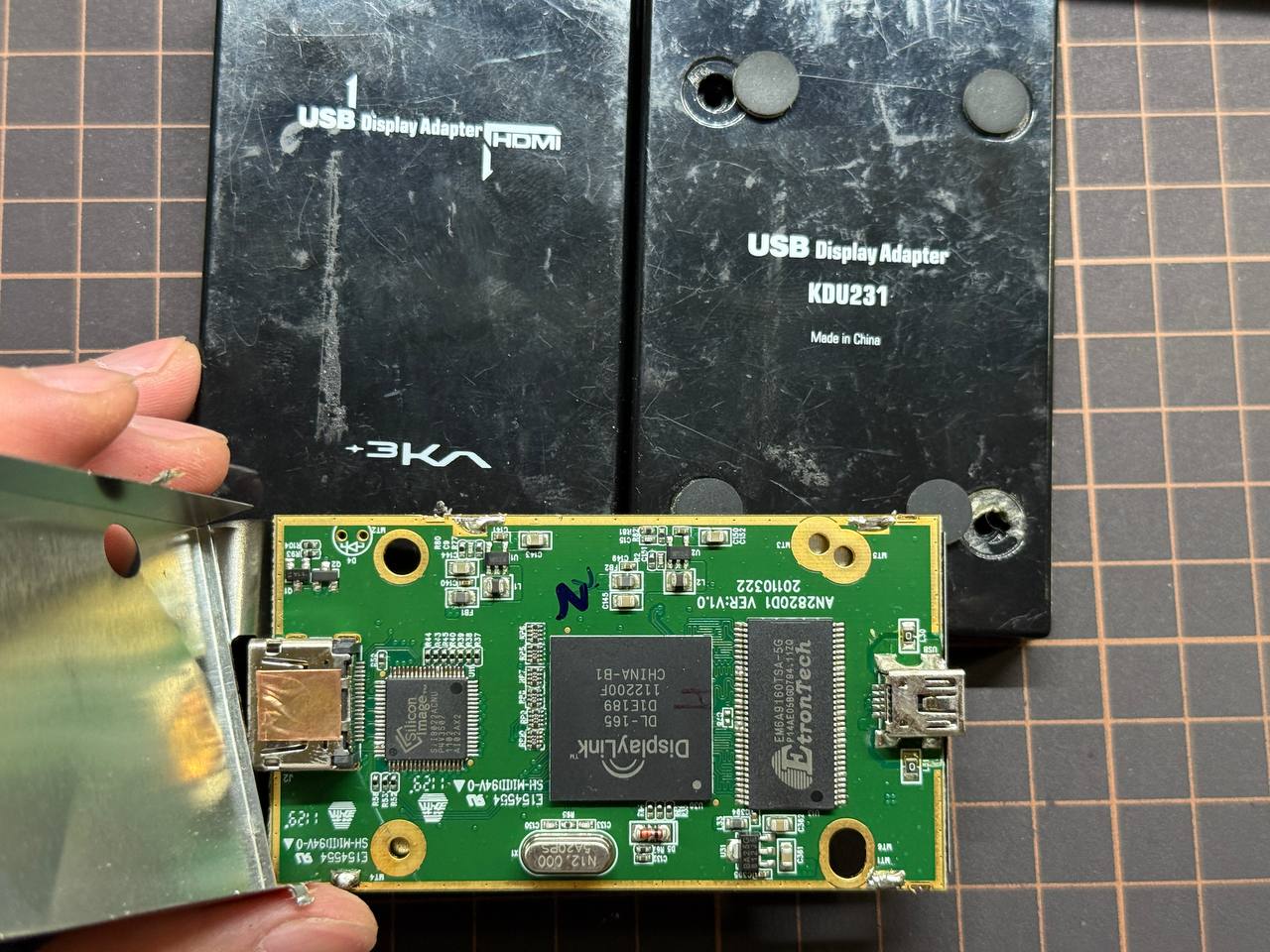

| SANKA / アユート | KDU231 | HDMI | DL-165 | ✅ Supported |
Docking Station with built-in DisplayLink
| Manufacturer | Model Number | Output | Chip | Status |
|---|---|---|---|---|
| 東芝 | dynadock U (PA3575) | VGA / DVI | ? | Untested |
| 東芝 | dynadock U10 (PA3541) | VGA / DVI | ? | Untested |
| 東芝 | dynadock V10 (PA3778) | DVI | ? | Untested |
| Lenovo | 0A33942 | DVI | ? | Untested |
| Kensington | K33367 | VGA | ? | Untested |
| Kensington | K33415 | VGA | ? | Untested |
| Kensington | K33930 | DVI | ? | Untested |
| Kensington | K33926 | DVI | ? | Untested |
| Kensington | K33951 | DVI | ? | Untested |
| Kensington | K33955 | DVI | ? | Untested |
| Targus | ACP50 | VGA | ? | Untested |
| Targus | ACP50US | VGA | ? | Untested |
| Targus | ACP51 | DVI | ? | Untested |
| Targus | ACP51US | DVI | ? | Untested |
| Targus | ACP51USZ | DVI | ? | Untested |
| Plugable | UD-160-A | DVI | ? | Untested |
| Hewlett Packard | MultiSeat t100 Thin Client | VGA | ? | Untested |
| Hewlett Packard | MultiSeat t150 Thin Client | VGA | ? | Untested |
USB Monitor with built-in DisplayLink
| Manufacturer | Model Number | Size | Resolution | Chip | Status |
|---|---|---|---|---|---|
| Samsung | LD190G | 18.5 | 1360x768 | ? | Untested |
| Samsung | LD220G | 21.5 | 1920x1080 | ? | Untested |
| DoubleSight | DS-90U | 9.0 | 1024x600 | ? | Untested |
| AOC | e1649Fwu | 15.6 | 1366x768 | ? | Untested |
| センチュリー | LCD-4300U | 4.3 | 800x480 | ? | Untested |

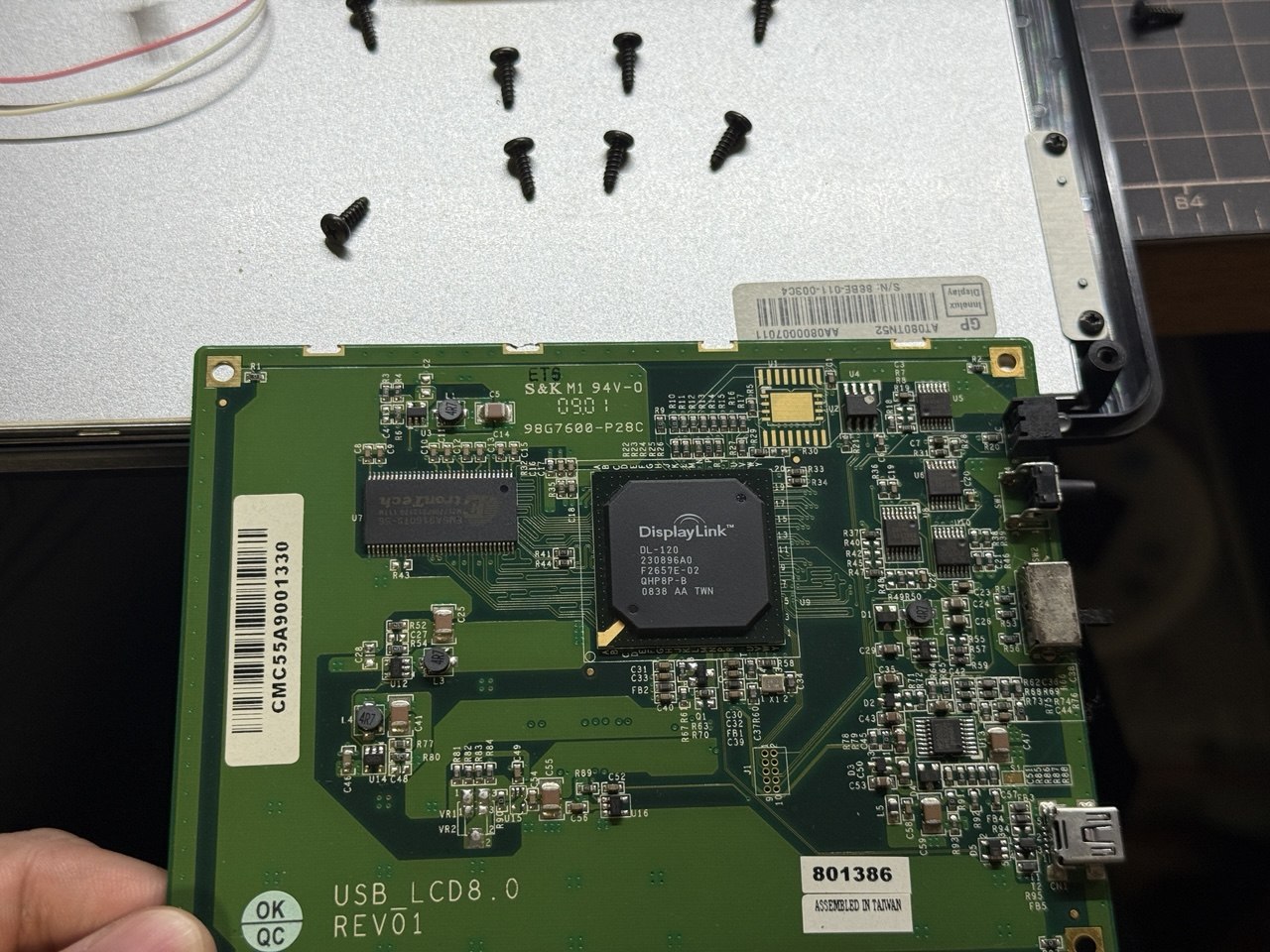

| センチュリー | LCD-8000U | 8.0 | 800x600 | DL-120 | ✅ Supported |
| センチュリー | LCD-8000UD | 8.0 | 800x600 | ? | Untested4 |
| センチュリー | LCD-8000U2 | 8.0 | 800x600 | ? | Untested |
| センチュリー | LCD-8000U2B | 8.0 | 800x600 | ? | Untested |
| センチュリー | LCD-8000U2W | 8.0 | 800x600 | ? | Untested |
| センチュリー | LCD-8000U2BV2 | 8.0 | 800x600 | ? | Untested |
| センチュリー | LCD-8000U2WV2 | 8.0 | 800x600 | ? | Untested |
| センチュリー | LCD-10000U | 10.1 | 1366x768 | ? | Untested |
| Nanovision | UM-710 | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-710S | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-720S | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-720F | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-730 | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-740 | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-740R | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-750 | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-760 | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-760R | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-760RF | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-760C | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-760CF | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-760-OF | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-760C-OF | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-760CH-OF | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-760C-SMK | 7.0 | 800x480 | ? | Untested |
| Nanovision | UM-1000 | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1010A | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1050 | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080 | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080-NB | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080-OF | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080C-G | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080C-G-NB | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080C-OF | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080H | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080H-NB | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080H-OF | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080CH-G | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080CH-G-NB | 10.1 | 1024x600 | ? | Untested |
| Nanovision | UM-1080CH-OF | 10.1 | 1024x600 | ? | Untested |
- Note that depending on the model-number suffix, some Century products are USB 3.0 versions. These do not currently work with this library.
Partially Supported and Unsupported Hardware
| Manufacturer | Model Number | Output | Chip | Status |
|---|---|---|---|---|

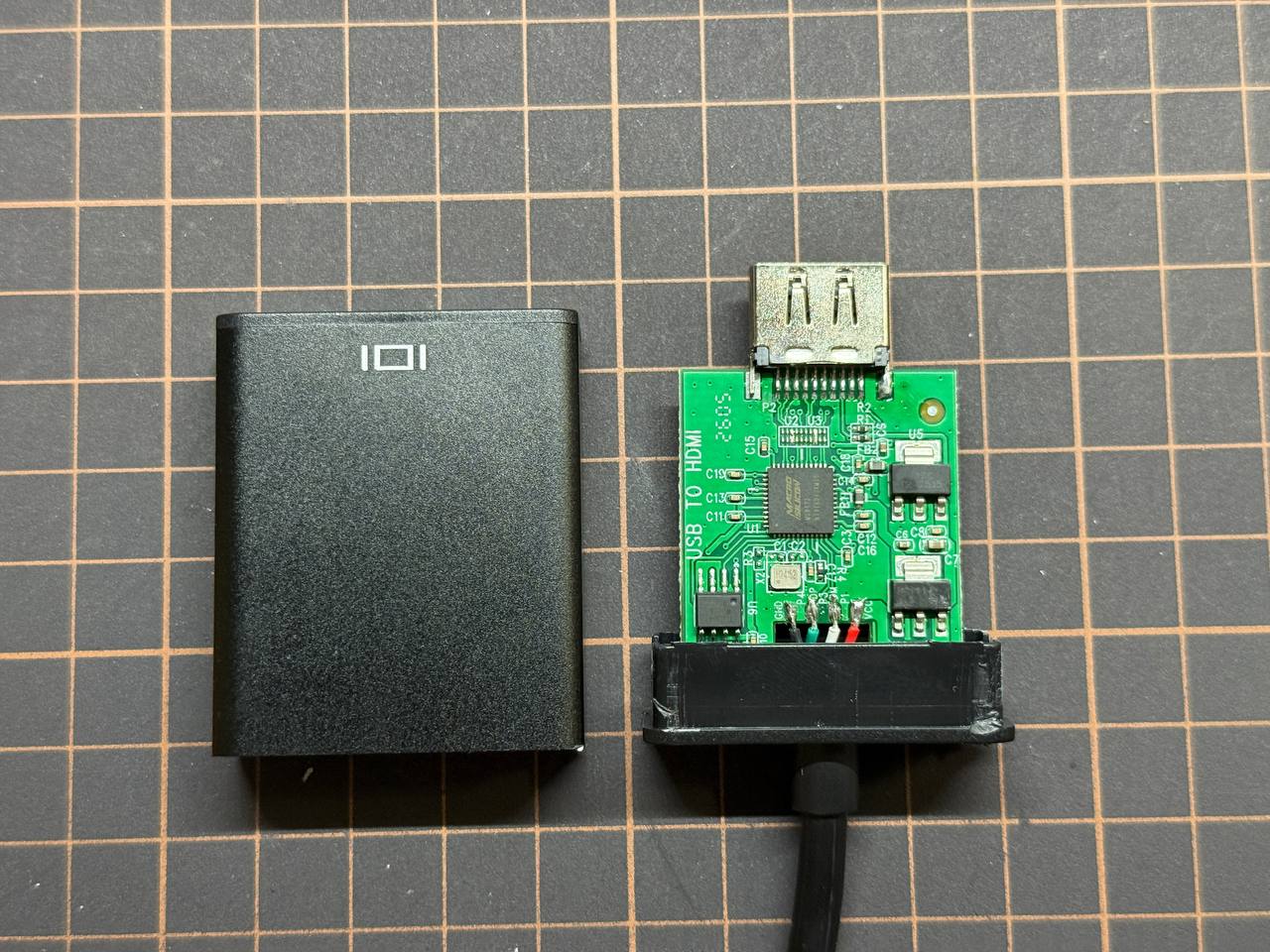

| Unknown (China) | MS9122 | HDMI | MS9122 | ✅ Supported (ESP32-P4, PC only) |

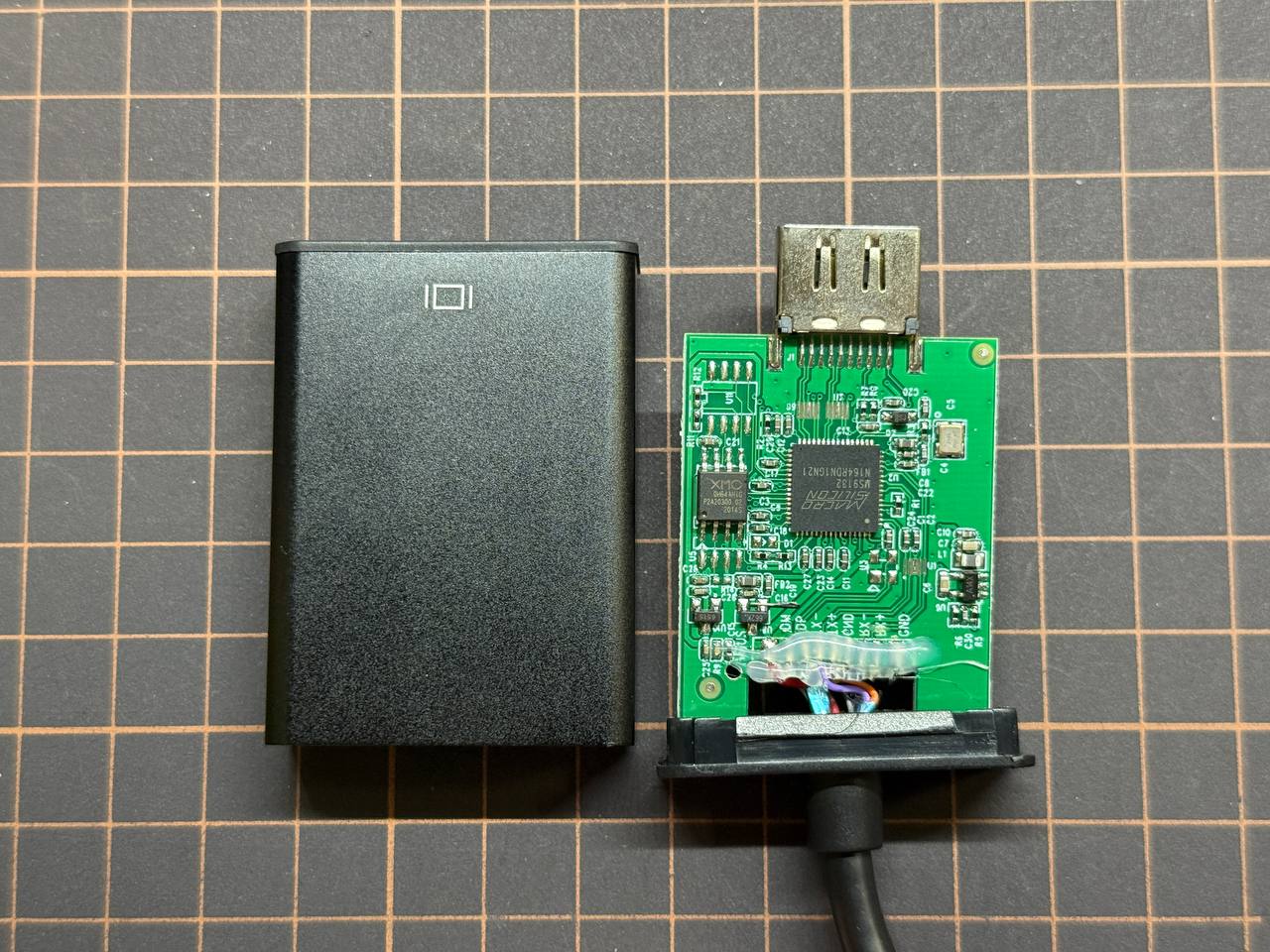

| Unknown (China) | MS9132 | HDMI | MS9132 | ✅ Supported (ESP32-P4, PC only) |

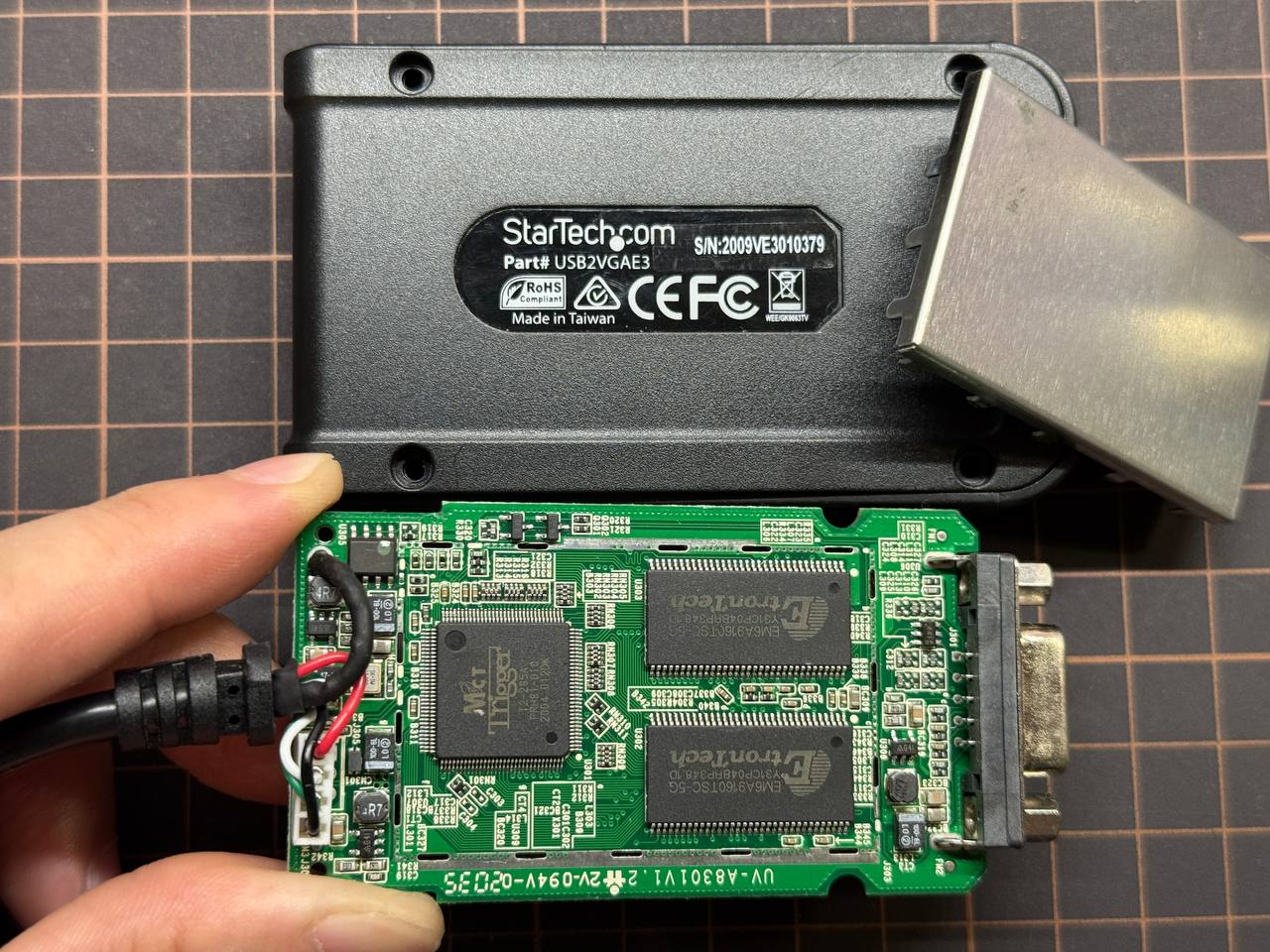

| StarTech | USB2VGAE3 | VGA | T2-285A | Not supported. |

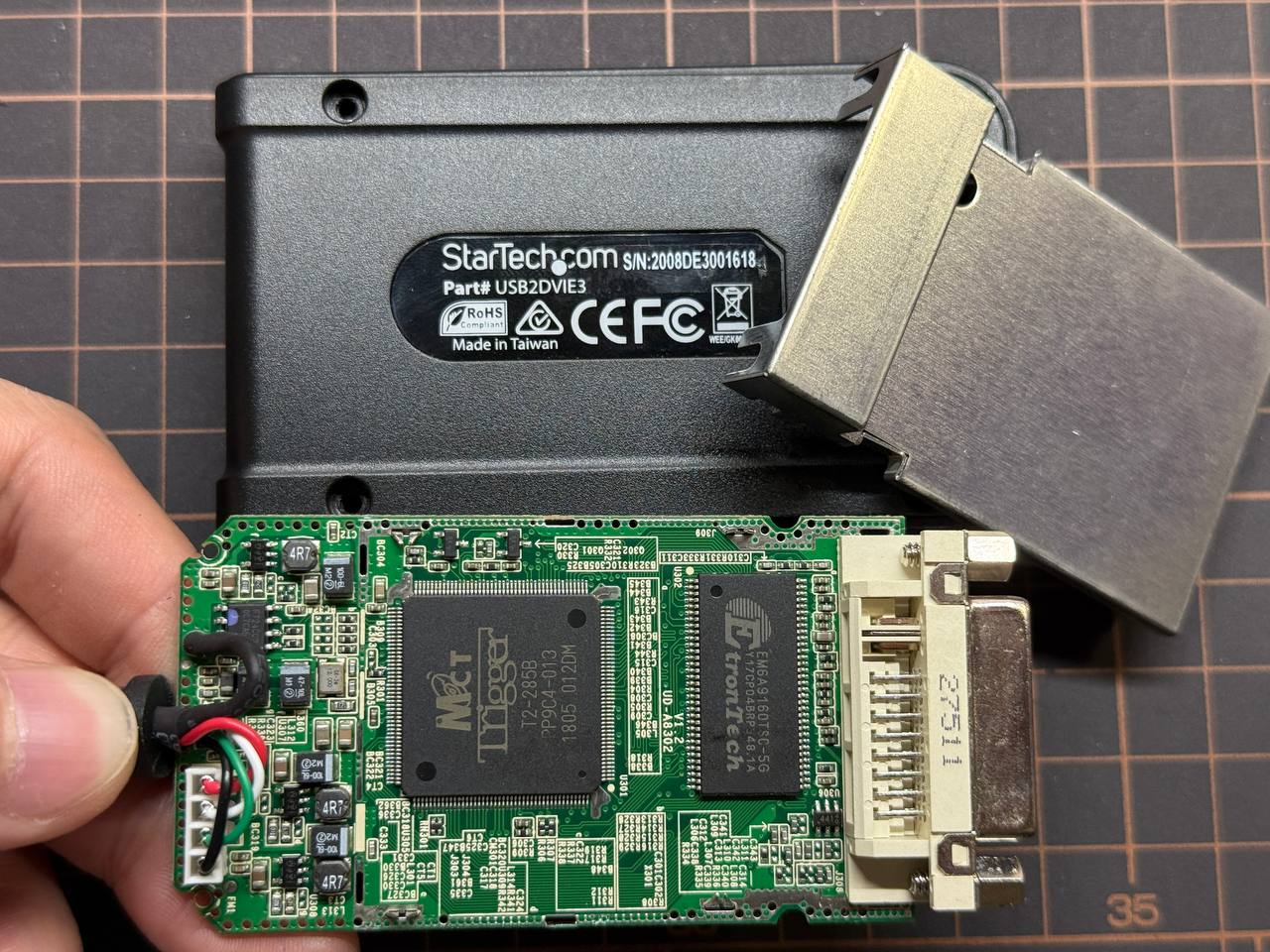

| StarTech | USB2DVIE3 | DVI | T2-285B | Not supported. |

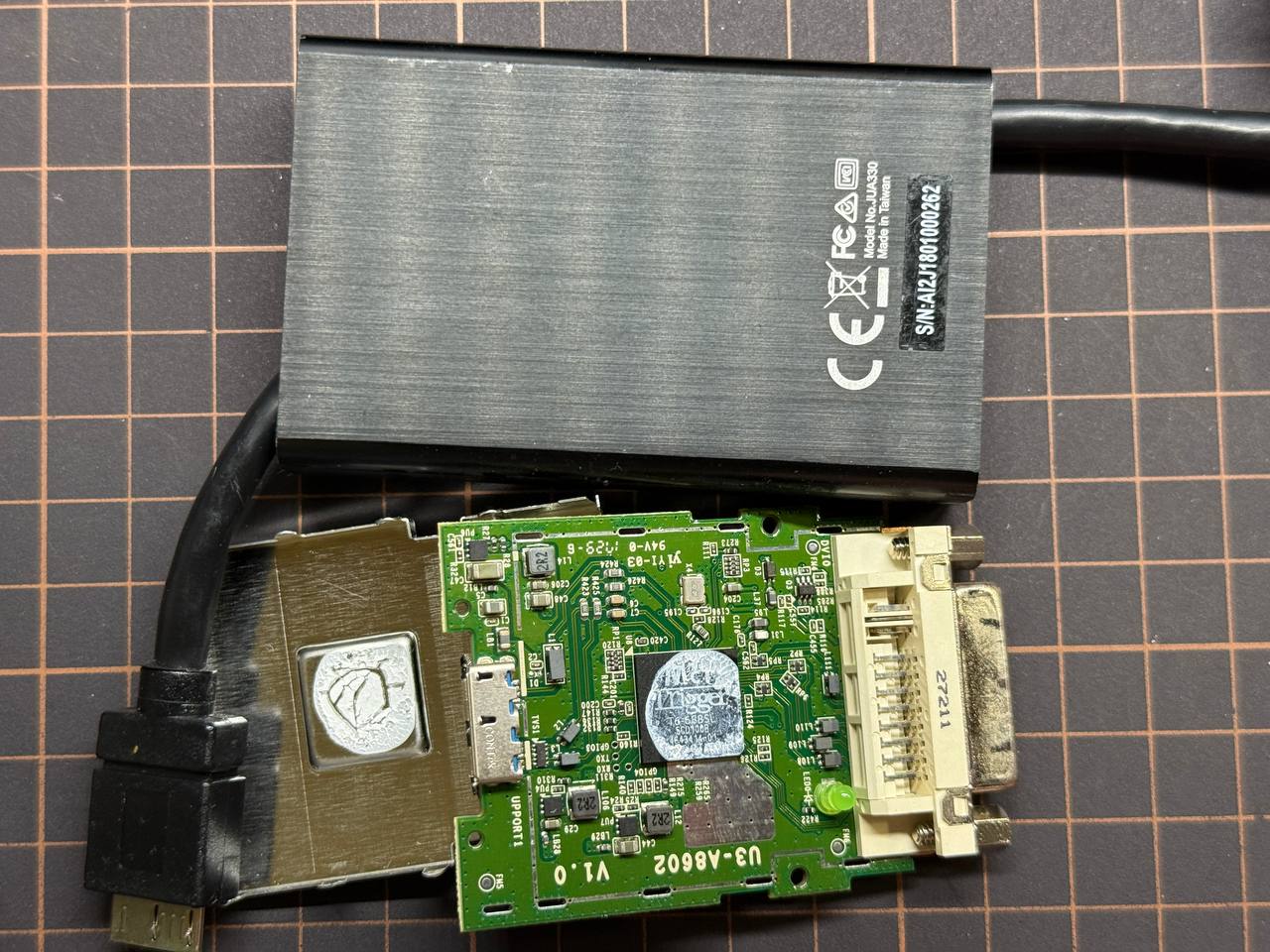

| j5create | JUA330 | DVI | T6-688SL | ✅ Supported (ESP32-P4, PC only) |

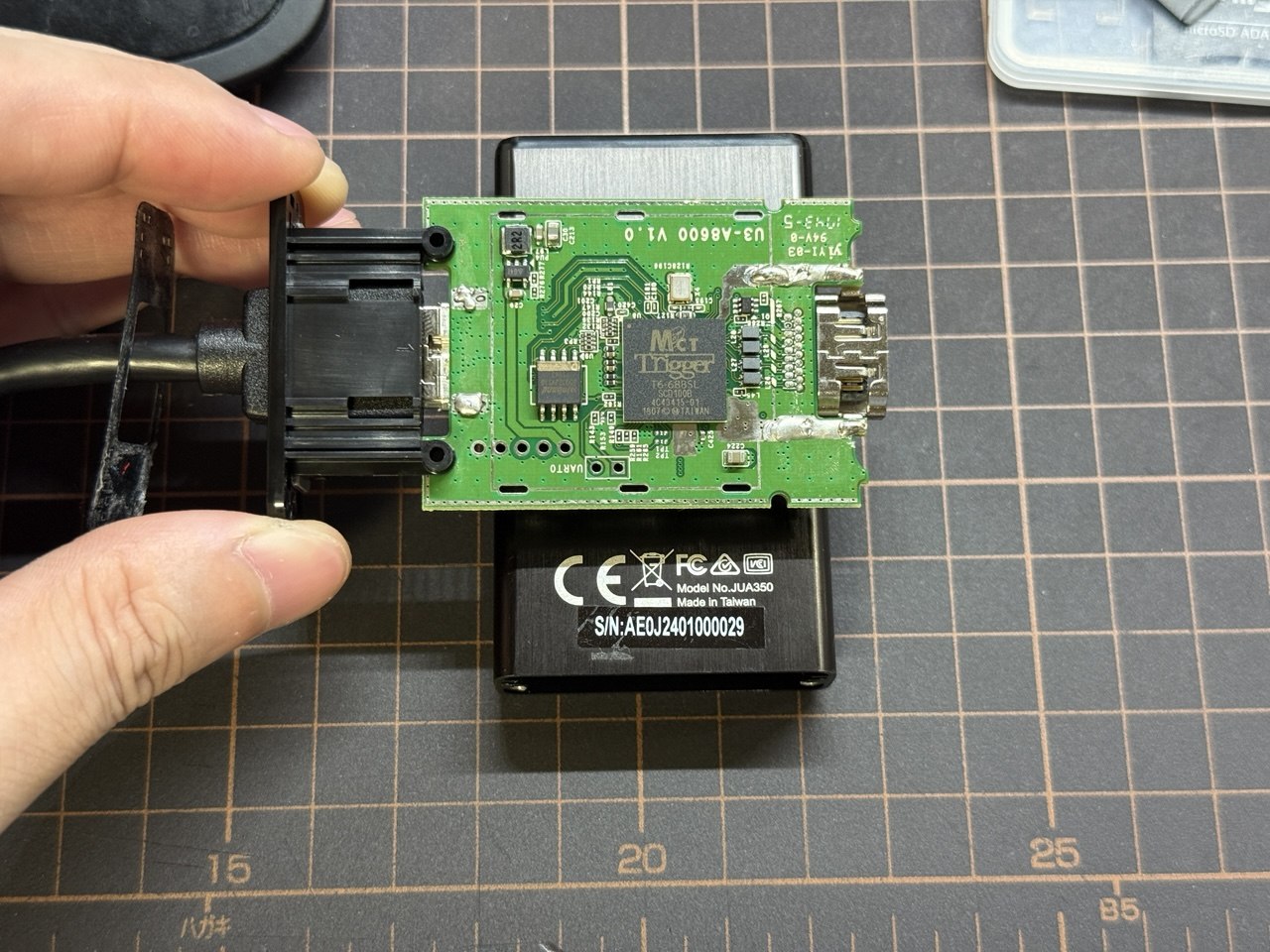

| j5create | JUA350 | HDMI | T6-688SL | ✅ Supported (ESP32-P4, PC only) |

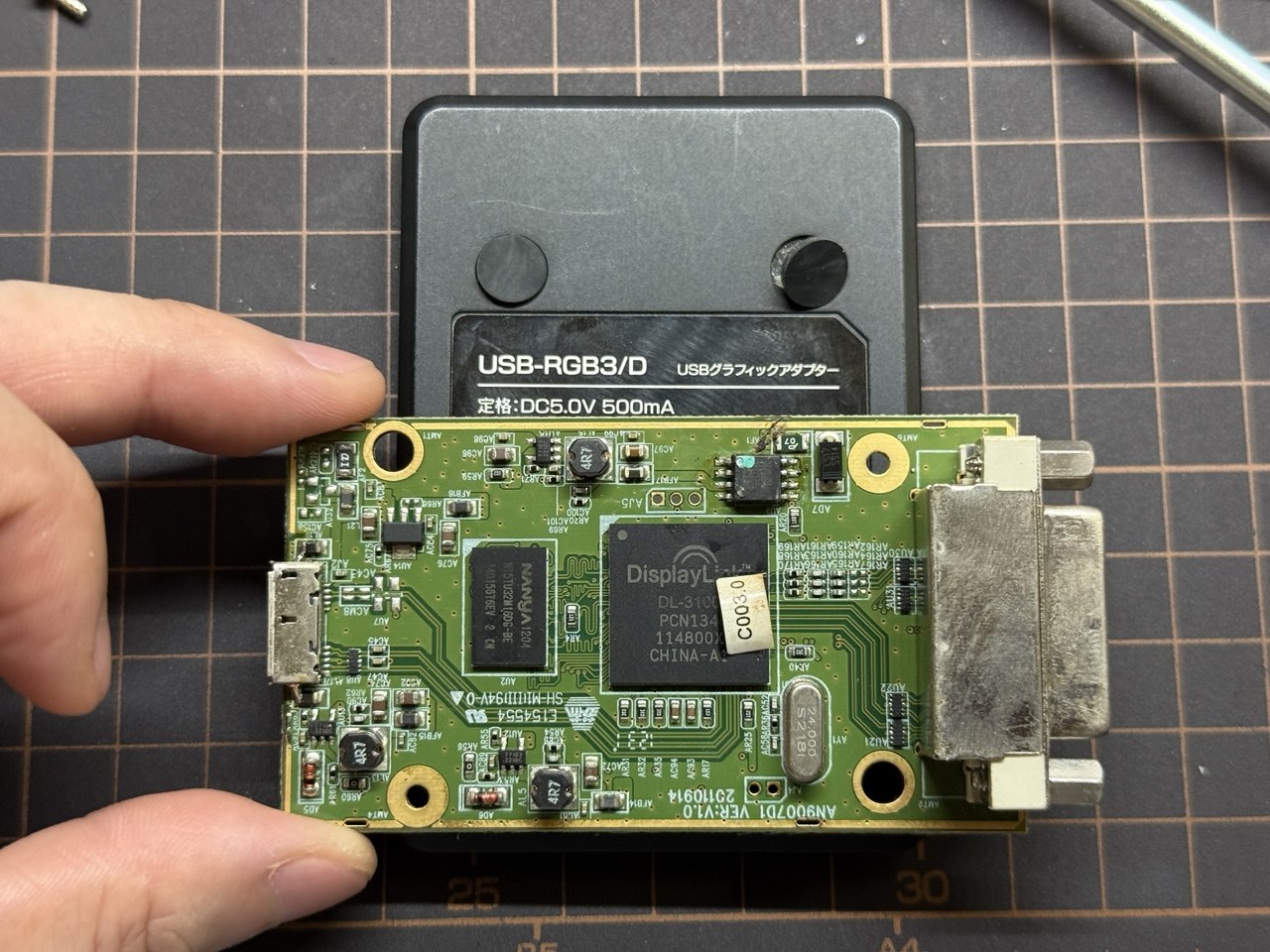

| アイ・オー・データ | USB-RGB3/D | DVI | DL-3100 | Not supported (DL-3xxx is encrypted) |

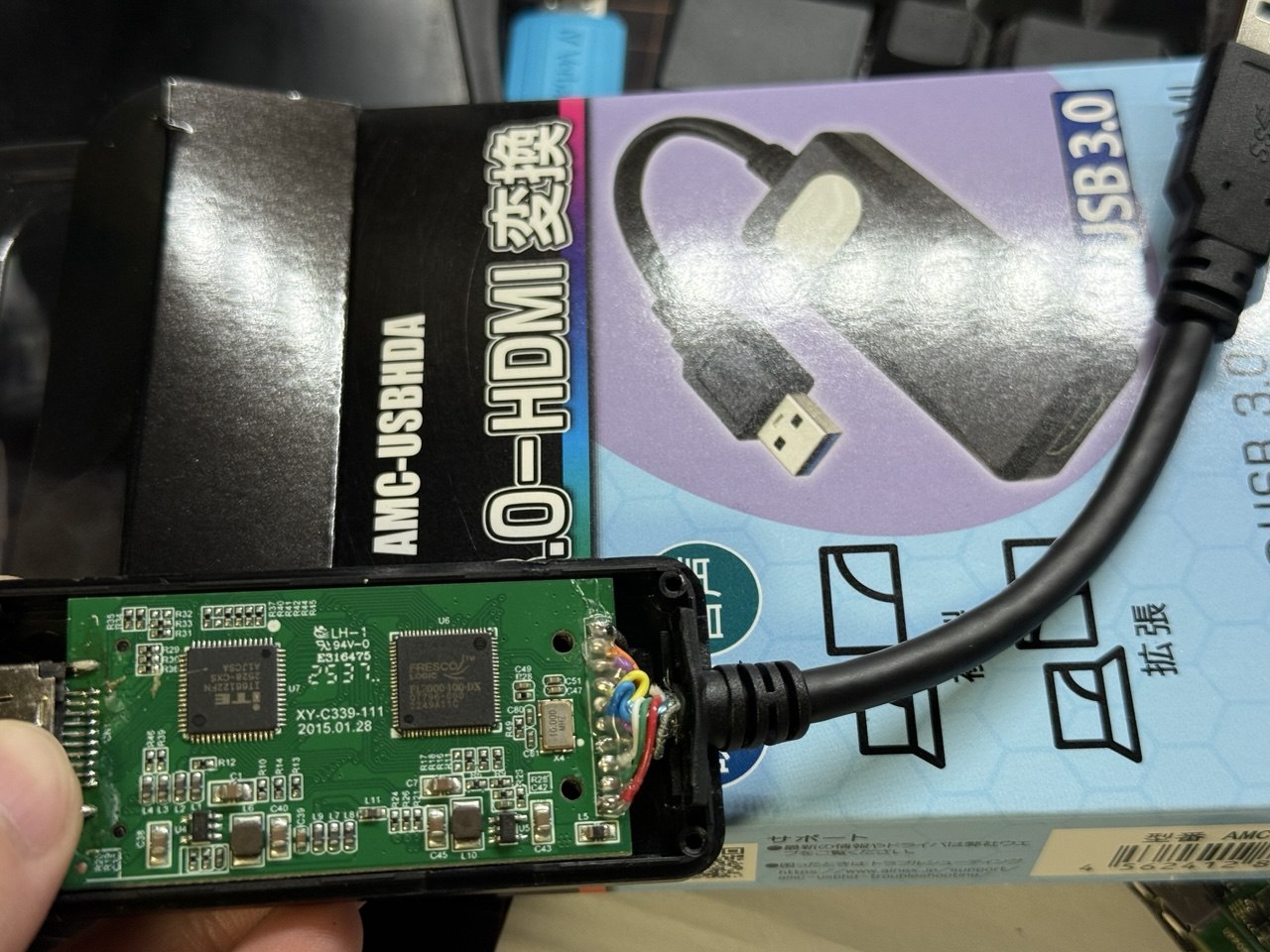

| アイネックス | AMC-USBHDA | HDMI | FL2000-100-DX | Not supported. NO FRAME BUFFER. |

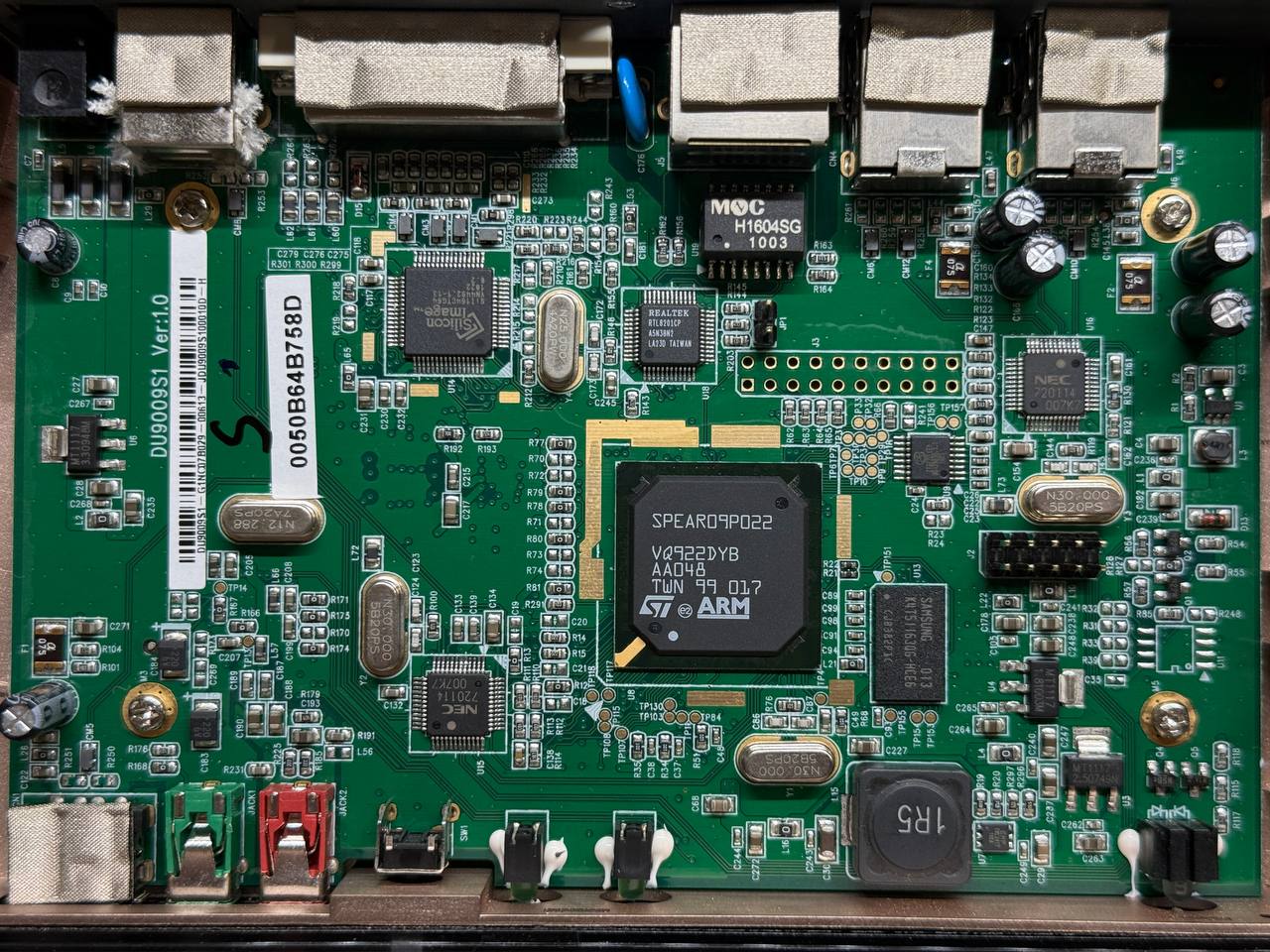

| Lenovo | M01060 (P/N: 45K1610, ASM: 51J0246, FRU: 51J0452) | DVI | STMicro SPEAr | Not supported. |
Notes
-
When using the device on a Windows PC, the automatic driver installation feature interferes with operation. It does not work with WinUSB; please use libusbK or libusb0. libusbK is recommended as it is the more modern option. ↩
-
Model number on the back: “FG-ADVI-D1-FLHD-1PBN-NA-AR01” ↩
-
It has a built-in USB hub. ↩
-
Features DVI output; can also be used as an adapter. ↩
